EZVIZ Smart Home WiFi Relay, 1 Channel, WiFi 6, BLE, Radio Freq:2,4Ghz, White, Conductor Cross Section:22~14AWG, Supports Matter for Enhanced Home Automation, 38.4×43.8×18.5mm, 100~240VAC 50/60Hz, 12VDC, 26,5g
Smart Home WiFi Relay
Specifications
| Sensor type |
Wi-Fi Relay |
| Radio frequency |
2.4GHz |
| Size |
38.4 × 43.8 × 18.5mm |
| Net weight |
26.5g |
| With package |
95.8g |
| Mounting |
Wall console |
| Conductor cross section |
22 to 14 AWG |
| Wall Console |
Plastic |
| Color |
White |
| Dry Contacts |
Supports |
| Relay |
16A |
| Electrical |
| Power supply |
100-240 VAC, 50 –60 Hz / 12VDC |
| Power consumption |
≤1.5W |
| Max. Switching Voltage |
250V AC or 30V DC |
| Channels |
1 Channel |
| Connectivity |
| Communication |
Wi-Fi 6, BLE |
| Radio frequency |
2.4 GHz |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Wi-Fi distance |
≤ 200m in open environment |
| Environmental |
| Operating Conditions |
-10°C to 45°C (14°F to 113 °F ),
Humidity 95% or less (non-condensing)
|
| Storage temperature |
-10°C to 45°C (14°F to 113 °F ) |
| Max. altitude |
2000m / 6562ft |
| Special Function |
| Device Temperature Protection |
Yes |
| Overload Protection |
Yes |
| Google Assistant & Alexa |
Supports |
| Matter |
Supports |
| In the box |
| In the box |
- T35WD ×1 |
| - Pin × 1 |
| - Regulatory information ×1 |
| - Quick start guide ×1 |
| Certifications |
| Certifications |
CE / REACH / WEEE / RoHS |
Downloads
Additional Information

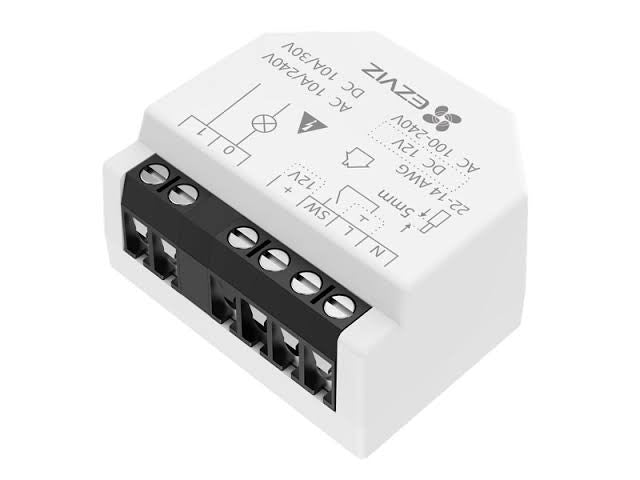

Transform your home into a smart haven with the EZVIZ CS-T35-R100-WD Smart Home WiFi Relay. Featuring WiFi 6 connectivity and Matter support, this reliable relay ensures seamless automation and control of your devices, enhancing convenience and efficiency. Compact and easy to install, it fits effortlessly into any space while providing powerful performance for a connected lifestyle.
