Physical Port

• 16/24-port 10/100BASE-TX RJ45 copper with IEEE 802.3at/ af PoE+ injector
• 2-port 10/100/1000BASE-T Gigabit RJ45 copper (Combo Interface)
• 2 100/1000BASE-X mini-GBIC/SFP slots (Combo Interface)
• RJ45 console interface for switch basic management and setup
  Reset button for system factory default

Switching

• Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• Automatic address learning and address aging
• Supports CSMA/CD protocol

Power over Ethernet

• Complies with IEEE 802.3at Power over Ethernet Plus
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 16/24 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE Power up to 30 watts for each PoE port
• 240/370-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 250m via extend mode
• PoE Management

  • Per port PoE function enable/disable
  • Per Port PoE operation mode selection
  • Per PoE port power budget control
  • PD classification detection and PoE consumption usage status
• Intelligent PoE features

  • PD alive check

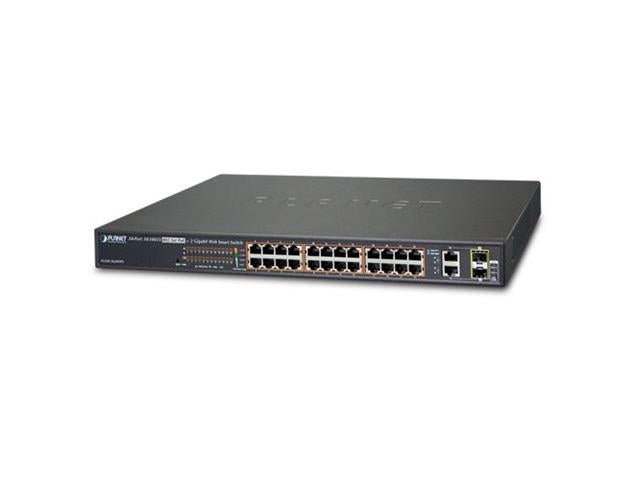

1. Datasheet - FGSW-2624HPS4
