Overview

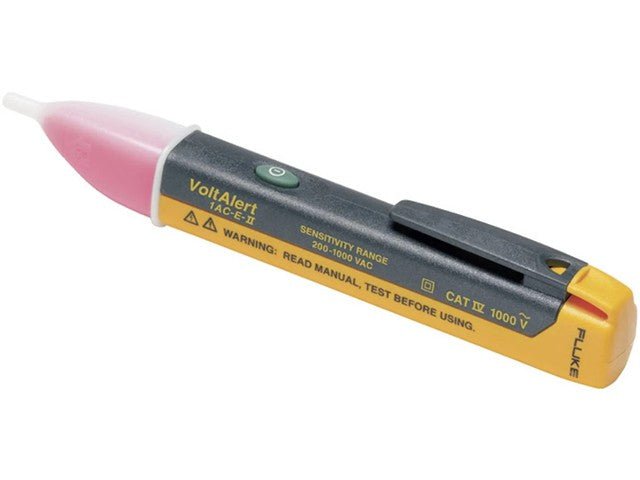

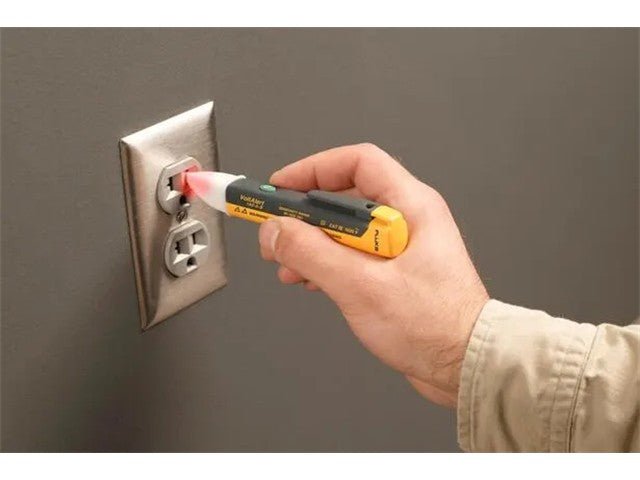

The portable 1AC II non-contact voltage tester from Fluke are easy to use – just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there's voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home and even detect miswires of an electrical outlet.
Features
The tip glows red and a beeper sounds when voltage is detected
- A loud, easy to hear beeper will sound and the tip will glow red when voltage is detected
- Optionally, the beeper can be disabled for use in quiet environments
Continuous self-test so you always know it’s working
- When the tip blinks red you know it’s working properly
- Provides a continual visual indication that the 1AC II is on
90 V to 1000 V AC or 200 V to 1000 V AC voltage detection range for wide application use
- Wide voltage detection range allows for use in a broad range of applications
- Also available in a low voltage model from 20 V to 90 V AC for controls circuits
Safety features
- Rated to CAT IV 1000 V for added protection
- CE and CSA approved
Additional tool features
- Audible/Silent mode for added convenience in quiet environments
- On/Off button
- Batteries included
- 2 year warranty
Specifications
| Operating Principles |
Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage. |
| Voltage sensing ranges |
Nominally, 90 V AC to 1000 V AC |
| Detector tip style |
Flat-tip |
| Light source |
One high intensity red LED |
| Agency Approvals |
|
| Safety |
IEC 61010-1: Pollution Degree 2, IEC 61010-2-030: CAT IV 1000 V |
| EMC |
IEC 61326-1: Portable |
| IP Rating |
IP 40 |
| Operating Temperature |
-10°C to 50°C (-14°F to 122°F) |
| Operating Humidity Ranges |
0% to 95% (0°C to 30°C) |
| 0% to 75% (30°C to 40°C) |
| 0% to 45% (40 to 55°C) |
| Operating Altitude |
3000 m |
| Cleaning |
Clean with damp cloth |
| Batteries |
2 AAA alkaline batteries included |
| Battery Life |
Typical battery life of greater than 1 year |
| Warranty Period |
Two years |
| Product does not respond to random electrostatic discharge. |
Downloads
Additional Information
| Device |
Voltage Dectector |
| Type |
90-1000VAC |
