Valve Connector - Cube Female DIN43650-A - 2 Pole + Earth 16A 250VAC/VDC PG9 IP65 4 - 7mm OD Cable Entry Black (931965100)

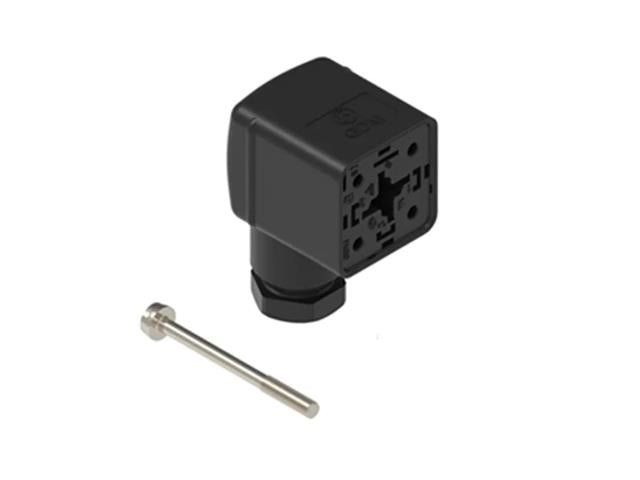

Cube Female Valve Connector
Specifications
- Product Family: Valve Connectors
- Product Sub Family: GDM Legacy
- Brand: Hirschmann
- Connector Type: Field Attachable
- Type of Contact / Gender: Female
- Connector Design: Angled
- Number of Pins: 2+PE (PE across cable outlet)
- Coding: A
- Shielding: Unshielded
- Attachment Type: Central Screw
- Rated Voltage: 250 V
- Rated Impulse Voltage: 4.0 kV
- Operating Voltage: 230 V AC/DC
- Rated Current*: 16 A
- Contact Resistance: ≤ 10 mOhm
- Insulation Resistance: ˃ 10^9 Ohm
- Mating Cycles: ≤ 50
- Type of Connection: Screw
- Cable Gland: PG9
- Conductor Cross Section: 0.25 - 1.5 mm²
- Suitable Cables: Ø 4.5 - 7 mm
- Ambient Temperature (Operation)*: -40°C to +125°C
- Protection Degree / IP Rating**: IP65
- Design Standard: DIN EN 175301-803-A, ISO 4400
- Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Clearance / Creepage Distance: DIN EN 60664-1 (2008/01); VDE 0110-1
- Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)
Materials
- Contact Base Material: CuZn
- Contact Plating: Cu/Sn
- Contact Bearer Material: PA GF
- Contact Bearer Color: Black
- Flammability Class (Contact Bearer): UL 94 HB
- Housing Material: PA GF
- Housing Color: Black
- Flammability Class (Housing): UL 94 HB
- Cable Gland Material: PA GF
- Cable Gland Gasket: NBR
- Cable Gland Color: Black
- Attachment Material: Steel, Philips combi slot
- Gasket Material: Sold separately
- Additional Technical Data
- Fastening Torque (Contact Screw): (50-60) Ncm
- Fastening Torque (Cable Gland): (250-375) Ncm
- Fastening Torque (Attachment): (50-60) Ncm
Downloads
Additional Information
| Device |
Connector |
| Type |
Cube | Female | Valve |
