GDM3109 - A0U - 10F - Rectangular Connectors - 4002044187590
GDM3109 - A0U - 10F - Rectangular Connectors - 4002044187590
GDM3109 - A0U - 10F - Rectangular Connectors - 4002044187590
GDM3109 - A0U - 10F - Rectangular Connectors - 4002044187590

GDM3109-A0U-10F

SKU: GDM3109-A0U-10F

BRAND: Hirschmann


Sold Out

Collections: Connectors

Type: Rectangular Connectors

Category: Solenoid Valve Connectors DIN43650

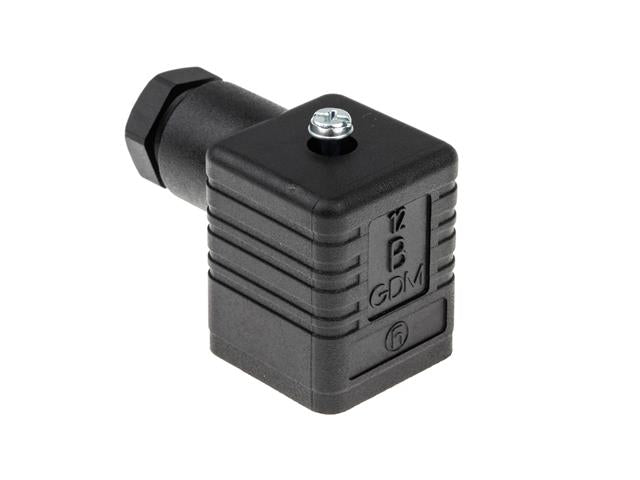

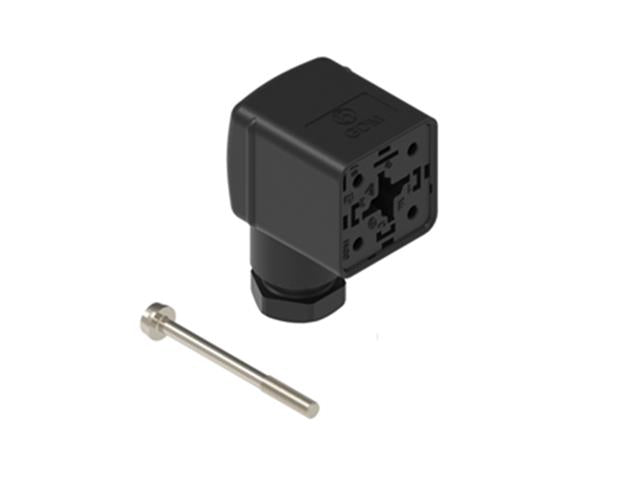

Valve Connector - Cube Female DIN43650-A - 3 Pole + Earth 16A 250VAC/VDC PG9 IP65 4 - 7mm OD Cable Entry Black (GDM3009 BK)

Cube Female Valve Connector

Specifications

  • Product Family: Valve Connectors
  • Product Sub Family: GDM Standard
  • Brand: Hirschmann
  • Connector Type: Field Attachable
  • Type of Contact / Gender: Female
  • Connector Design: Angled
  • Number of Pins: 3+PE (PE across cable outlet)
  • Coding: A
  • Shielding: Unshielded
  • Attachment Type: Central Screw
  • Replacement for: ID: 931969100 Name: GDM 3009 schwarz
  • Rated Voltage: 250 V
  • Rated Impulse Voltage: 4.0 kV
  • Operating Voltage: 230 V AC/DC
  • Rated Current*: 16 A
  • Contact Resistance: ≤ 10 mOhm
  • Insulation Resistance: ˃ 10^9 Ohm
  • Mating Cycles: ≤ 50
  • Type of Connection: Screw
  • Cable Gland: PG9
  • Conductor Cross Section: 0.25 - 1.5 mm²
  • Suitable Cables: Ø 4.5 - 9 mm
  • Ambient Temperature (Operation)*: -40°C to +125°C
  • Protection Degree / IP Rating**: IP65
  • Design Standard: DIN EN 175301-803-A, ISO 4400
  • Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
  • Clearance / Creepage Distance: DIN EN 60664-1 (2008/01); VDE 0110-1
  • Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)

Downloads

Additional Information

Device Valve
Type Cube | Female | Connector
