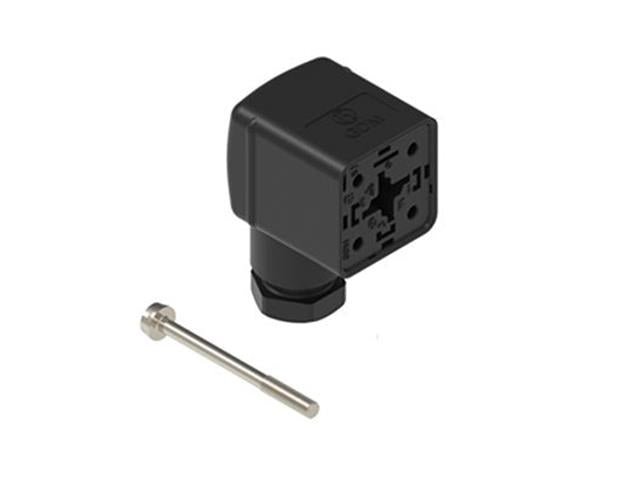

• Product Family: Valve Connectors
• Product Sub Family: GDM Standard
• Connector Type: Field Attachable
• Type of Contact / Gender: Female
• Connector Design: Angled
• Number of Pins: 3+PE (PE across cable outlet)
• Coding: A
• Shielding: Unshielded
• Attachment Type: Central Screw
• Replacement for: ID: 931952100 Name: GDM 3011 schwarz
• Rated Voltage: 250 V
• Rated Impulse Voltage: 4.0 kV
• Operating Voltage: 230 V AC/DC
• Rated Current*: 16 A
• Contact Resistance: ≤ 10 mOhm
• Insulation Resistance: ˃ 10^9 Ohm
• Mating Cycles: ≤ 50
• Type of Connection: Screw
• Cable Gland: PG11
• Conductor Cross Section: 0.25 - 1.5 mm²
• Suitable Cables: Ø 4.5 - 11 mm
• Ambient Temperature (Operation)*: -40°C to +125°C
• Protection Degree / IP Rating**: IP65
• Design Standard: DIN EN 175301-803-A, ISO 4400
• Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
• Clearance / Creepage Distance: DIN EN 60664-1 (2008/01); VDE 0110-1
• Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

• Contact Base Material: CuZn
• Contact Plating: Cu/Sn
• Contact Bearer Material: PA GF
• Contact Bearer Color: Black
• Flammability Class (Contact Bearer): UL 94 HB
• Housing Material: PA GF
• Housing Color: Black
• Flammability Class (Housing): UL 94 HB
• Cable Gland Material: PA GF
• Cable Gland Gasket: NBR
• Cable Gland Color: Black
• Attachment Material: Steel, Philips combi slot
• Gasket Material: Sold separately

1. Datasheet - GDM310B-A0U-10F
