Valve Connector - Cube Female DIN43650-A - 3 Pole + Earth 10A 250VAC/VDC PG16 w/Silver Contacts - Compact IP65 6 - 7mm OD Cable Entry BLACK (933944100)

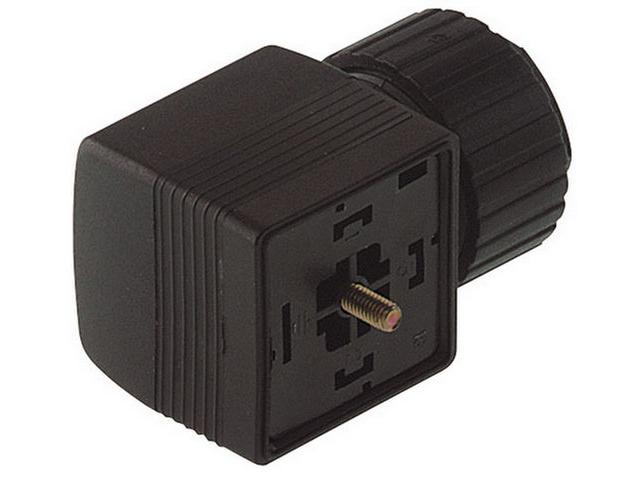

Cube Female Valve Connector
Specifications
|
Product Family
|
Valve Connectors
|
|
Side 1 Product Sub Family
|
GDMF Flat Line
|
|
Connector Type
|
Field attachable
|
|
Side 1 Type of Contact/Gender
|
Female
|
|
Connector Design
|
Angled
|
|
Number of Pins
|
3+PE (PE across cable outlet)
|
|
Coding, Side 1
|
A
|
|
Shielding Type
|
Unshielded
|
|
Attachment Type
|
Central Screw
|
|
Rated Impulse Voltage
|
4.0 kV
|
|
Operating Voltage
|
230 V AC/DC
|
|
Current Rating
|
10 A
|
|
Side 1 Contact Resistance
|
≤ 10 mOhm
|
|
Insulation Resistance
|
˃ 10^9 Ohm
|
|
Mating Cycles
|
≤ 50
|
|
Type of Connection
|
Screw
|
|
Cable Gland
|
M16
|
|
Cross Section
|
0.25 - 1.5 mm²
|
|
Suitable Cables
|
Ø 4 - 8 mm
|
|
Ambient Temperature (Operation)*
|
-40 °C - +125 °C
|
|
Protection Degree / IP Rating**
|
IP65
|
|
Side 1 Design Standard
|
DIN EN 175301-803-A, ISO 4400
|
|
Side 1 Pollution Degree
|
3 acc. to DIN EN 60664-1 (VDE 0110-1)
|
|
Clearance / Creepage Distance
|
DIN EN 60664-1 (2008/01); VDE 0110-1
|
|
Overvoltage Category
|
III acc. to DIN EN 60664-1 (VDE 0110-1)
|
|
Contact Base Material
|
CuZn
|
|
Side 1 Contact Plating
|
Cu/Sn
|
|
Contact Bearer Material
|
PA GF
|
|
Contact Bearer Color
|
black
|
|
Flammability Class (Contact Bearer)
|
UL 94 V-0
|
|
Housing Material
|
PA GF
|
|
Housing Color
|
Black
|
|
Flammability Class (Housing)
|
UL 94 HB
|
|
Cable Gland Material
|
PA GF
|
|
Cable Gland Gasket
|
NBR
|
|
Cable Gland Color
|
Black
|
|
Attachment Material
|
Steel, Philips combi slot
|
|
Gasket Material
|
NBR Captive
|
|
Protection Circuitry
|
No Circuitry
|
|
Fastening Torque (Contact Screw)
|
M3: (25-30) Ncm
|
|
Fastening Torque (Cable Gland)
|
(150-200) Ncm
|
|
Fastening Torque (Attachment)
|
(50-60) Ncm
|
Downloads
Additional Information
Upgrade your connectivity with the GDMF3009 BK Valve Connector. Designed for durability and efficiency, this compact 3-pole connector features silver contacts and IP65 protection, ensuring reliable performance in any setting. Perfect for 10A 250VAC/VDC applications, it offers secure cable entry and easy installation for seamless integration into your systems.
