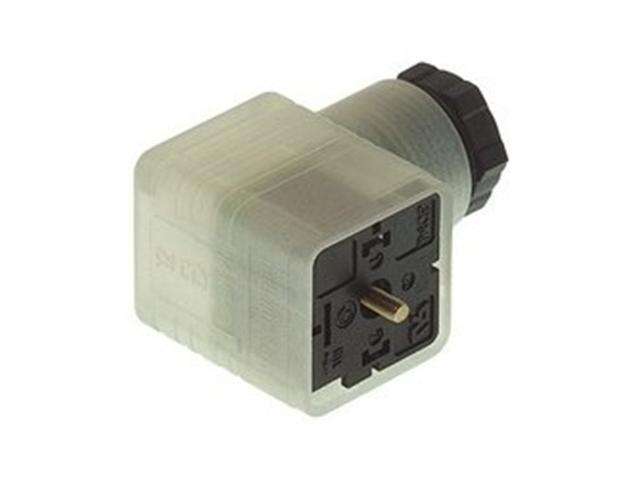

Valve Connector - Cube Female DIN43650-A - 2 Pole + Earth w/Free Wheel Diode, Varistor + Yellow LED - 8A 120VAC/VDC PG11 IP65 4 - 11mm OD Cable Entry BLACK (933927212)
Rectangular Connector
Features
Other Standard Types : Transparent Housing, Cable Gland Grey
Number of contacts : 2 + PE
Cable Gland : PG 11 (black)
Conductor Size : max. 1.5 mm²
Standard : DIN EN 175 301-803-A
Housing Color : transparent
Construction Type : A
Description of Wiring
LED Color : LED Yellow
Suppressor : Varistor
Technical Data
Pin Dimensions : 6.3 mm x 0.8 mm, 4.8 mm x 0.8 mm
Rated Voltage : AC/DC 120 V
Rated Current : 8 A
Contact Resistance : <= 4 mOhm
Type of Termination : Screw
Suitable Cables : 4.5 mm to 11 mm diameter
Mounting : Central Nut
Material
Contact Surface Material : Sn
Contact Bearer Material : PA
Housing Material : PA
Environmental Conditions
Protection class (IEC 60529) : IP 65 (gasket necessary)
Pollution Severity : 3
Temperature Range : -40 ºC to +90 ºC
Inflammability class
Housing : 94 HB
Contact Bearer : 94 HB
Additional Information
Device
Connector
Type
Industrial | Yellow LED
Upgrade your connections with the GDML2011-LED120VRYE BK Valve Connector, featuring a durable design and yellow LED indicator. Rated for 120V AC/DC and IP65 protection, it ensures reliable performance in various environments. With easy screw termination and compatibility with 4.5 to 11mm cables, it's perfect for any application requiring efficiency and safety.
