GSD-803

SKU: GSD-803

BRAND: Planet

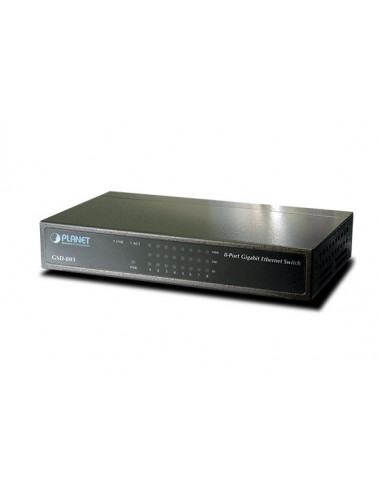

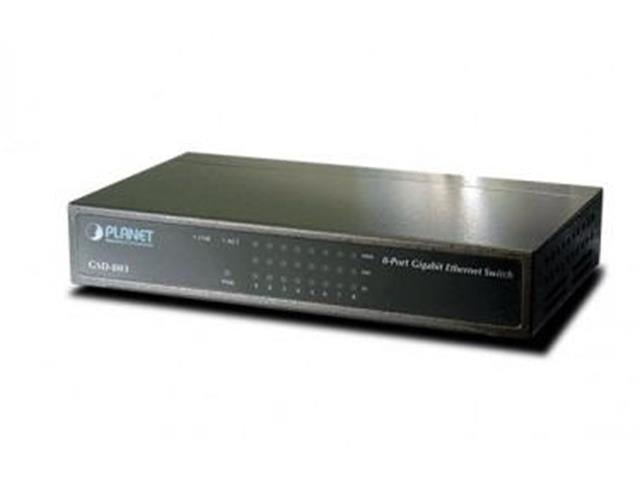

Planet 8 Port 10/100/1000T Gigabit Ethernet Switch

Overview

Optimal Solution for Energy Saving and Gigabit High Performance

PLANET Green Networking Switch-GSD-803 is an ideal solution in line with the energy-saving trend worldwide. The GSD-803 is an 8-port Gigabit Ethernet Switch bringing both benefits of energy saving and Gigabit wire speed performance. It is specially designed for home networking, SOHOs and enterprises.

Energy Saving

The GSD-803 incorporates two advanced Green Networking technologies and is able to provide power saving up to 40% less energy but maintains high performance efficiently.

(1) Hibernation Link Down power saving The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-803 will automatically adjust power usage of the ports that are shut down or not connected to network device.

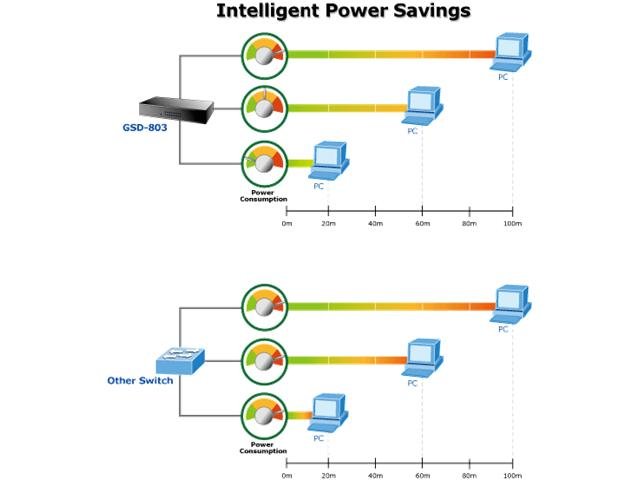

(2) Intelligent scales power based on cable length Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-803 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-803 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.

Features

RJ-45 Interface

  • 8 10/100/1000Mbps Gigabit Ethernet ports
  • Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
  • Supports Auto MDI/MDI-X function

Switching

  • Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Integrated address look-up engine, supporting 8K absolute MAC addresses
  • 9K Jumbo packet size
  • Power saving ability for Green networking
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol

Hardware

  • Made of metal, Desktop size and Wall-Mount design
  • LED indicators for system power, per port 1000 & Link / Act
  • 5V DC, 1A external power adapter
  • FCC, CE Class B compliant

Specification
