HA-004-F-V2

SKU: HA-004-F-V2

BRAND: Wain

In Stock
R 137.11_{(inc VAT)}
R 119.23_{(ex VAT)}

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

Series 3A Insert 4P+E - Size 3A - Female Screw Termination 10A/230/400V = 09200042711

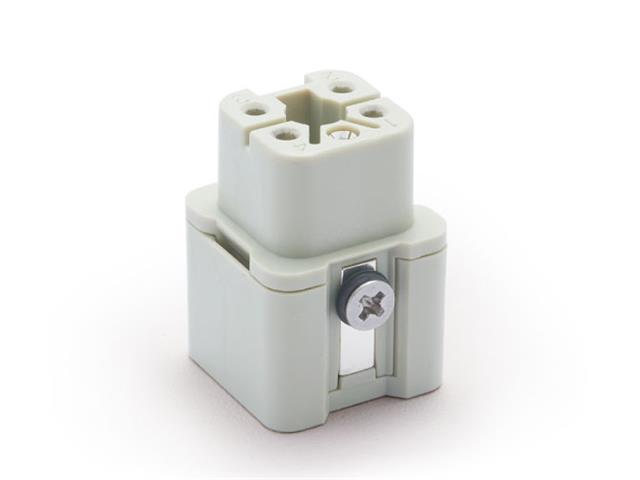

Series 3A Insert 4P+E

Feature(s)

Suitable Coding Element is: CODE-Q3

Suitable Plastic Hoods, Housings and Covers with Seal Grey M20

H3A.P-BK-1L
H3A.P-CCT-1L-M20 3
H3A.P-SF-1L-M20
H3A.P-SE/S-2B-M20
H3A.P-TE/S-2B-M20
H3A-CV/S-2B/1
H3A-CV/S-2B/2
H3A-CV-1L/1M
H3A-CV-1L/1F

Suitable Plastic Hoods/Housings No Seal Grey M20

H3A.P-SE-2B-M20
H3A.P-TE-2B-M20
H3A.P-BK-1L-SE

Suitable Metal Hoods/Housings No Seal M20/M25

H3A-SEH-2B-M25
H3A-SEHC-2B-M20
H3A-TE-2B-M25

Suitable Metal Hoods/Housings with Seal M20

H3A-TE/S-2B-M20
H3A-BK-1L/W
H3A-BK-1L/W-MCV/S
H3A-SF-1L/W-M20
H3A-CCT-1L/W-M20

Specifications

Inserts
Number of contacts	4+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage conductor	230/400V
---Rated impulse voltage	4kV
---Pollution degree	3
---or	10A 250V 4kV 3
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	0.75-1.5mm²
---AWG	18-16
---Tightening/Test torque	0.25N·m

Additional Information

Device	Insert
Type	Series 3A \| 4P+E
