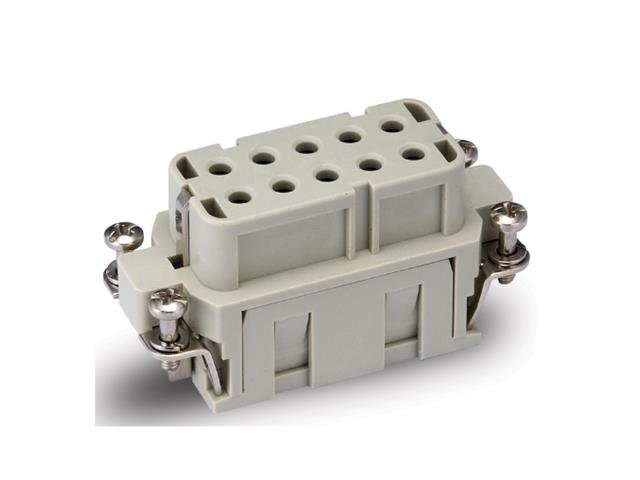

HA-010-FC

Name: HA-010-FC - Communica [Part No: HA-010-FC]
Brand: Wain
SKU: HA-010-FC
Price: 195.43 ZAR
Availability: InStock

SKU: HA-010-FC

BRAND: Wain

R 224.74_{(inc VAT)}
R 195.43_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

Series 10A (C) Insert 10P+E - Size 10A - Female Crimp Termination 16A/250V = 09200103101

Series 10A (C) Insert 10P+E

Feature(s)

10A Metal Hoods/Housings 1 Lever

H10A-BK-1L/SC-T
H10A-BK-1L/SC-CV
H10A-SF-1L/SC-CV-2M20
H10A-MCV-1L/SC.1
H10A-MCV-2B/2S
H10A-SE-2B-M20
H10A-TE-2B-M20
H10A-CCT-1L/SC-M20

Specifications

Inserts
Number of contacts	10+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage conductor	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	16A 230/400V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12

Additional Information

Device	Insert
Type	Series 10A (C) \| 10P+E

Upgrade your electrical connections with the HA-010-FC Series 10A Insert, featuring durable metal hoods and reliable female crimp terminations. Rated for 16A and 250V, this insert ensures optimal performance in demanding environments while providing excellent insulation resistance. Perfect for professional applications, it delivers a long-lasting, secure connection you can trust.
