HDD-024-FC

Name: HDD-024-FC - Communica [Part No: HDD-024-FC]
Brand: Wain
SKU: HDD-024-FC
Price: 286.34 ZAR
Availability: InStock

SKU: HDD-024-FC

BRAND: Wain

R 329.29_{(inc VAT)}
R 286.34_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

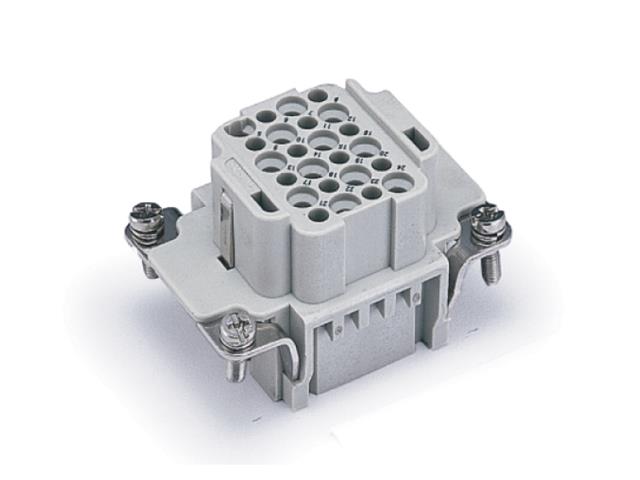

Series 24DD (C) Insert 24P+E - Size 6B - Female Crimp Termination 10A/250V = 09160243101

Series 24DD (C) Insert 24P+E

Specifications

Inserts
Number of contacts	24+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	250V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	10A 230/400V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤3mΩ
Crimp terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

Downloads

Datasheet - HDD-024-FC

Additional Information

Device	Insert
Type	Series 24DD (C) \| 24P+E

Discover the HDD-024-FC Series 24DD (C) Insert, designed for reliable performance with 24+PE contacts. This durable, high-quality crimp termination supports 10A/250V, ensuring safety and efficiency for your electrical applications. Ideal for professionals seeking longevity and superior connectivity, it withstands extreme temperatures and meets stringent electrical standards. Upgrade your connections with this versatile insert today!
