HDD-072-FC(73-144)

SKU: HDD-072-FC(73-144)

BRAND: Wain

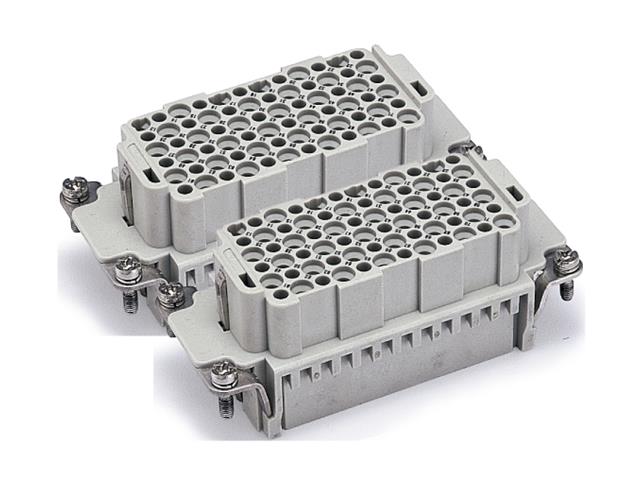

Series 144DD (C) Insert 72P+E - Size 32B - Female Crimp Termination 10A/250V -Numbered 73- 144 = 09210723111

Series 144DD (C) Insert 72P+E

Specifications

Inserts
Number of contacts 144(2x72)+PE
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage  250V
---Rated impulse voltage 4kV
---Pollution degree 3
---Pollution degree 2 also 10A 230/400V 4kV 2
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤3mΩ
Crimp terminal
---Wrie gauge 0.14-2.5mm²
---AWG 26-14

Downloads

Additional Information

Device Insert
Type Series 144DD (C) | 72P+E
