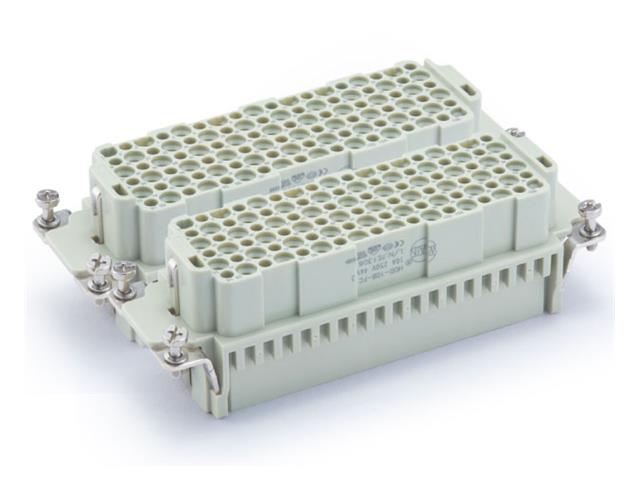

HDD-108-FC(109-216)

SKU: HDD-108-FC(109-216)

BRAND: Wain


Series 216DD (C) Insert 108P+E - Size 48B - Female Crimp Termination 10A/250V -Numbered 1 = 09-216 = 09161083111

Series 216DD (C) Insert 108P+E

Specifications

Inserts
Number of contacts 216(2x108)+PE
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage  250V
---Rated impulse voltage 4kV
---Pollution degree 3
---Pollution degree 2 also 10A 230/400V 4kV 2
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤3mΩ
Crimp terminal
---Wrie gauge 0.14-2.5mm²
---AWG 26-14



Downloads

Additional Information

Device Insert
Type Series 216DD (C) | 108P+E
