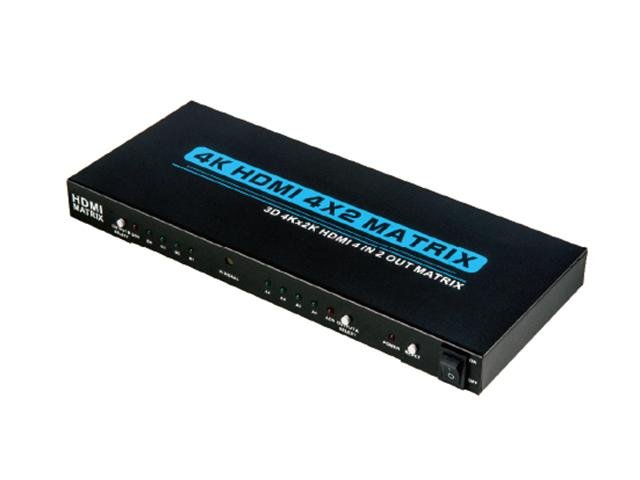

HDMI MATRIX CST-204A

SKU: HDMI MATRIX CST-204A

BRAND: Communica


4K HDMI 1.4 Matrix, any 4 HDMI Sources to any 2 HDMI Outputs, Includes 5V 2A PSU.

Overview

HDMI Matrix is a perfect matrix product with detached external audio output ports, which can connect 4 different HDMI signal sources and 2 display. It can easily switch any 1 r 2 of 4 input signals to 2 displays by using remote control or pushing button. The output signals can be the same or different. By using this product you can avoid the need to disconnect and reconnect signal sources to display frequently. It can smartly select input signal sources with priority order and jump over those input signal sources which are not in work. It can optimize your home theatre system to the best effect.

Features

  • When 4 input ports are separately connected to 4 signal sources with HDMI cables, the HDMI Matrix automatically recognizes the last connected port and switches its input signal to 2 displays.
  • The needed input signal sources must be selected by using remote control or pushing button in order to make 2 displays showing 2 different signals.
  • Work with all HDCP-enabled sources devices and display devices with HDMI Port.
  • Support high resolutions up to 1920x1200, including 480i/p, 576i/p, 720i/p, 1080i and 1080p,3840x2160@25/30Hz.
  • Switch easily between any 4 HDMI sources.
  • The 2 displays can get the same or different signals without mutual interaction.
  • Connected easily to dual-channel audio receiver device
  • Support HDMI 1.4.
  • HDCP Compliant.
  • Support DVI device with DVI to HDMI adapter.
  • Plug-and-play and no need of setting.
  • Metal casing design and overall shielding without signal interference.
  • Use remote control or push button to freely select input source.
  • LED indicates signal /power mode.

Specification
