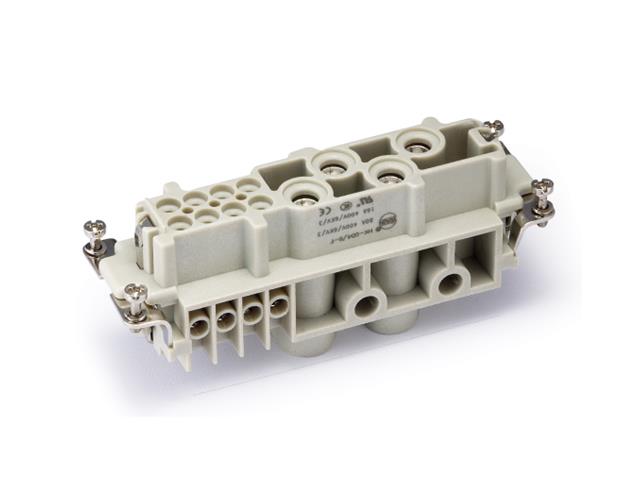

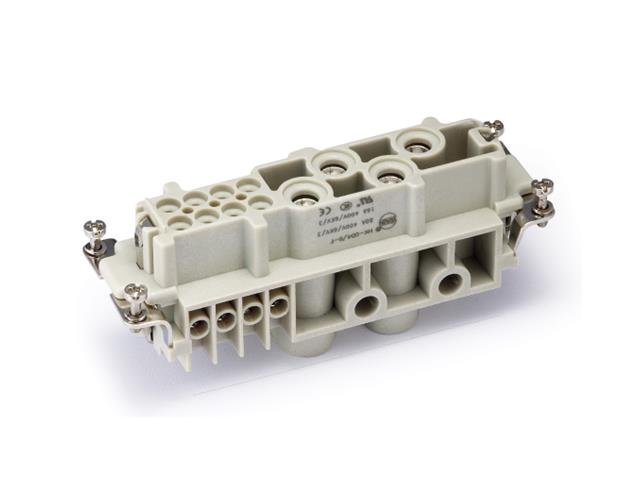

Series K4/8 Insert 12P (4P/8P+E) - Size 24B - Female Screw Termination 4@ 80A/400V - 8@16A/400V = 09380122701

Series K4/8 Insert 12P (4P/8P+E)

Specifications

Product parameters

Inserts
Number of contacts 4/8+PE
Electrical data acc. to EN 61 984
Power area
---Rated current 80A
---Rated voltage 830V
---Rated impulse voltage 8kV
---Pollution degree 3
Signal area
---Rated current 16A
---Rated voltage 400V
---Rated impulse voltage 6kV
---Pollution degree 3
Rated voltage acc. to UL 600/600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Power contacts
---Material copper alloy
---Surface hard-silver plated
---Contact resistance ≤0.3mΩ
---Screw terminal
------geometric wire gauge 1.5-16mm²
------AWG 16-6
---Tightening tourque
------mm²
mm² 1.5 2.5 4 6 10 16
N.m 1.2 2 3 3 3 3
------N.m
---Stripping length 14mm
Signal contacts
---Material copper alloy
---Surface hard-silver plated
---Contact resistance ≤1mΩ
---Screw terminal
------mm² 0.5-2.5mm²
------AWG 20-14
---Tightening tourque 0.5Nm
---Stripping length 7.5mm

Downloads

Additional Information

Device Insert
Type Series K4/8 | 12P (4P/8P+E) | Size 24B
