HKD 4 AXIS MACH3 USB STEPPER I/F

SKU: HKD 4 AXIS MACH3 USB STEPPER I/F

BRAND: Communica

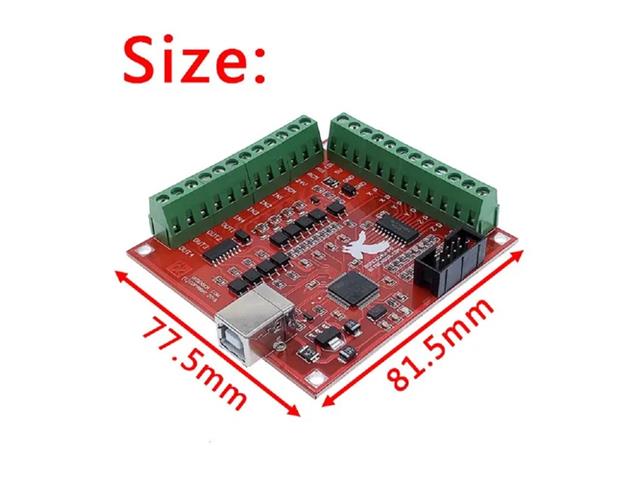

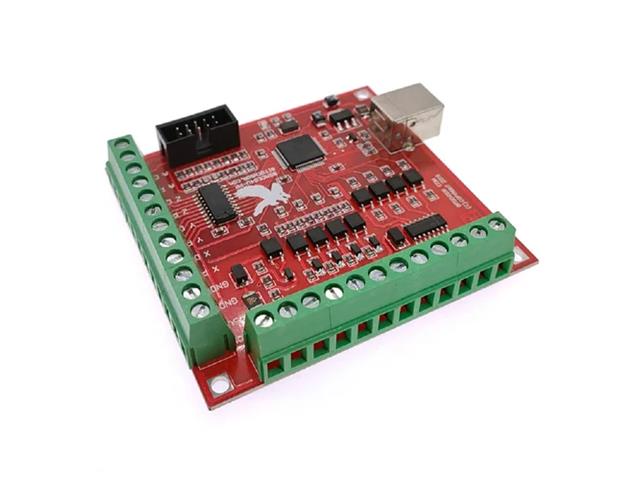

Super USB Interface MACH3 100KHZ Board. 4 Axis Interface Driver Motion Controller- 3D Printer/CNC

Super USB Interface MACH3 100KHZ Board

Overview

This type of the CNC USB MACH3 Controller Card is of strong anti-interference ability, the frequency converter interface is isolated from the computer and the main control circuit,. The interference signal will not be introduced because of the introduction of the external strong current equipment.–Support for 4-axis linkage, you can connect four stepper motor drives or servo drives

  • Support automatic probe tool, Emergency input, limit switch, connecting electronic handwheel.
  • Need to use an external 24V DC power supply to isolate the USB and external ports, and to make the system more stable.
  • 4 general-purpose isolated relay drive output can drive four relays for controlling the spindle starts, forward and reverse rotating pumps, and other devices.
  • Compatible with windows 7/8/10.

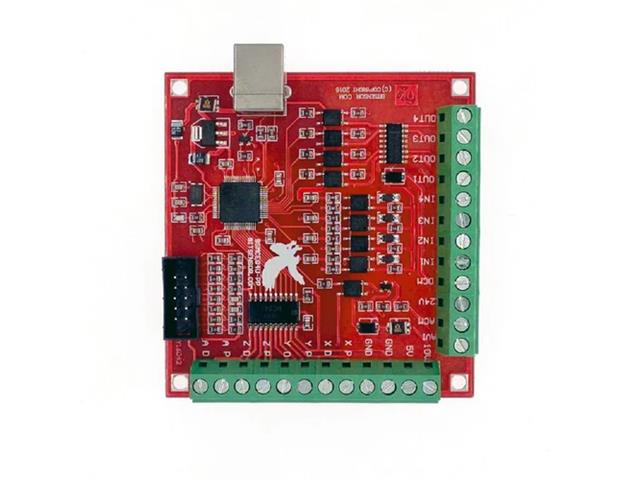

Features

  • Support for 4-axis connection, which can connect four stepper motor units or servo drives;
  • The maximum step-pulse frequency is 100KHz, which is suitable for servo or stepper motor;
  • Supports automatic probe tool
  • Supports emergency entry
  • Supports limit switch
  • Support to connect the electronic steering wheel
  • You need to use an external 24V DC power supply to isolate the USB and external port, and to make the system more stable
  • It has a 0-10V output port, you can use mach3 software to control the spindle motor speed.
  • 4 commonly used inputs, you can connect the limit switch, estop switch, probe switch, reset to zero, and other devices
  • 4 commonly used isolated relay output interface, can drive four relays to control spindle start, turn forward and turn back,
    pumps and other devices
  • 1 Status LED, indicates connection status on the board

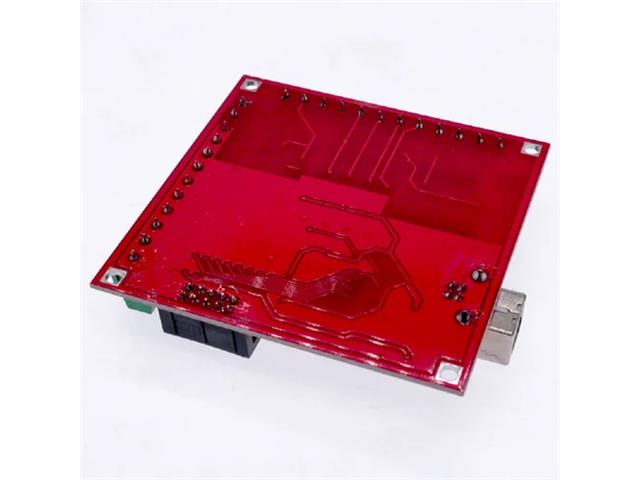

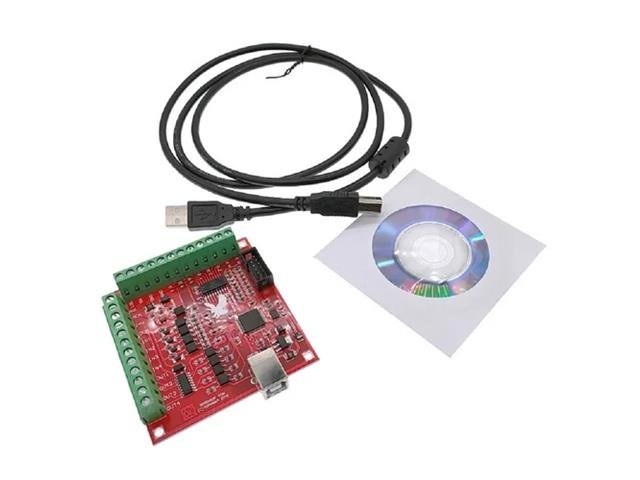

Package List:

  • 1×USB CNC Controller Board
  • 1×USB cable
  • 1×CD

Setup Instructions

  • Step 1: Installing Mach3: You will need to purchase a Mach3 license and download the software. If you already have a licensed copy
    of Mach3, skip this step.
  • Step 2: Download the USB Motion Driver RnRMotion.dll from the link above and copy and paste the file into your Mach3 Plugins
    folder Example: "C:/Users/ProgramFiles/Mach3/Plugins"
  • Step 3: Make sure your board is connected to the PC via USB cable. It should automatically recognize the USB device.
  • Step 4: Open Mach3 and you should be prompted to select a driver. Select the "RnRMotionController" and check "Don't ask me again".

This will allow your board to communicate with Mach3.
Step 5: Download the XML Mach3 Config File above by right-clicking on the link and selecting "save as". Save the Mach3Mill.xml
file in your Mach3 root folder.

Additional Information

Device Board
Type Super | USB Interface | MACH3 | 100KHZ
