HKD BLUETOOTH 5.0 MODULE

SKU: HKD BLUETOOTH 5.0 MODULE

BRAND: Communica

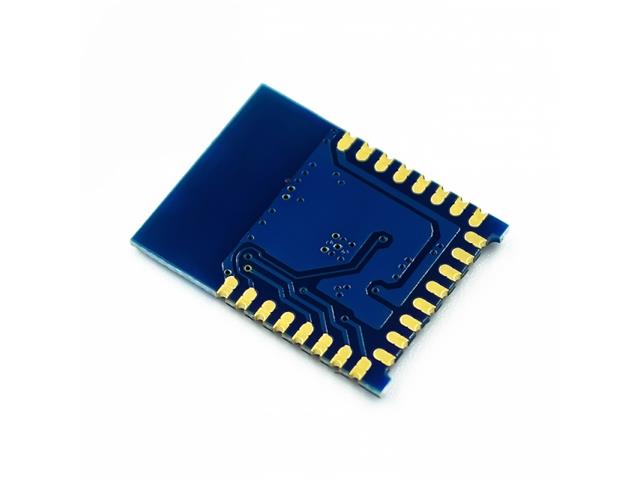

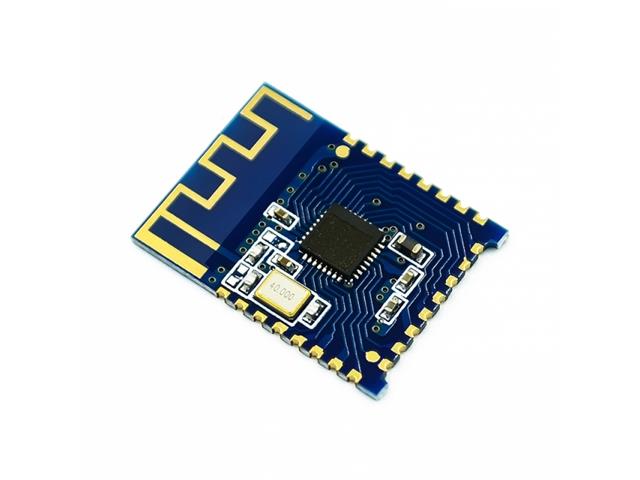

JDY-23 Bluetooth 5.0 Module

Bluetooth 5.0 Module

Specifications

  • Model : JDY-23
  • Working frequency : 2.4G
  • Transmit power : 4db(maximum)
  • Communication Interface : UART
  • Operating  Voltage : 1.8V - 3.6V
  • Operating temperature : -40° - 80°
  • Antenna : Built-in PCB antenna
  • Receiving ensitivity : -97dbm
  • Transmission distance : 60 meter
  • Master-slave support : Slave

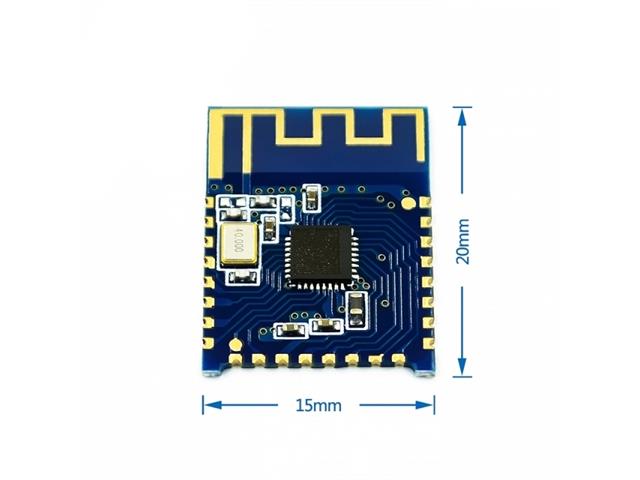

  • Module size : 19.6 * 14.94 *1.8 mm(Length, width and height)
  • Bluetooth version : BLE 5.0(Compatible with BLE4.0, BLE4.2)
  • Awakening state current : 800uA(Broadcast)
  • Light sleep state current : <50uA (Broadcast)
  • Deep sleep current : 9uA (No broadcast)
  • Instruction parameter saving : Parameter configuration power-down data is saved
  • SMT soldering temperature : <260°
  • rf-TX/RX peak current : 5mA

Additional Information

Device Module
Type Bluetooth 5.0
