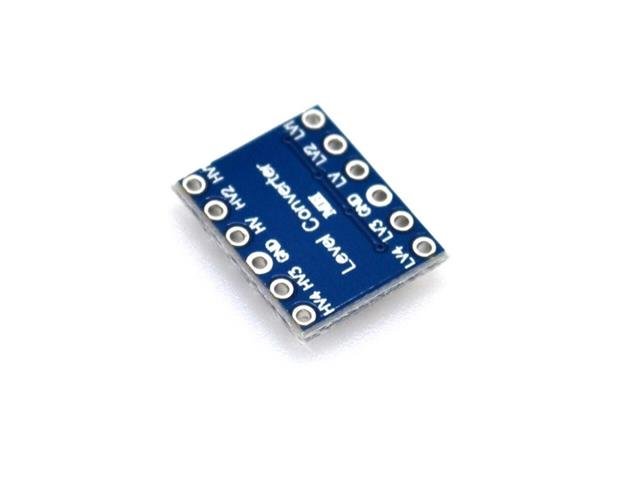

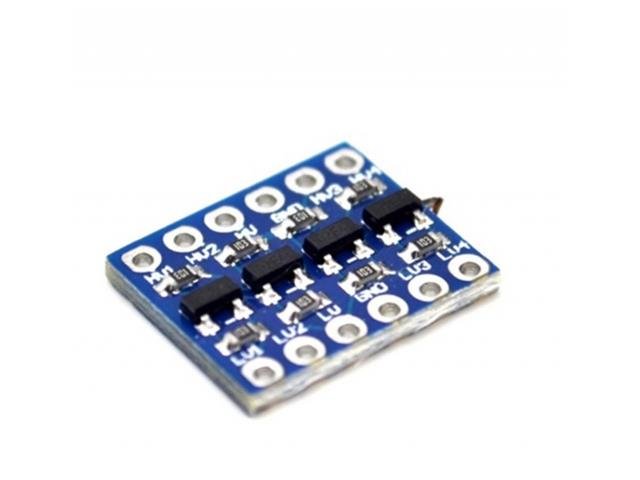

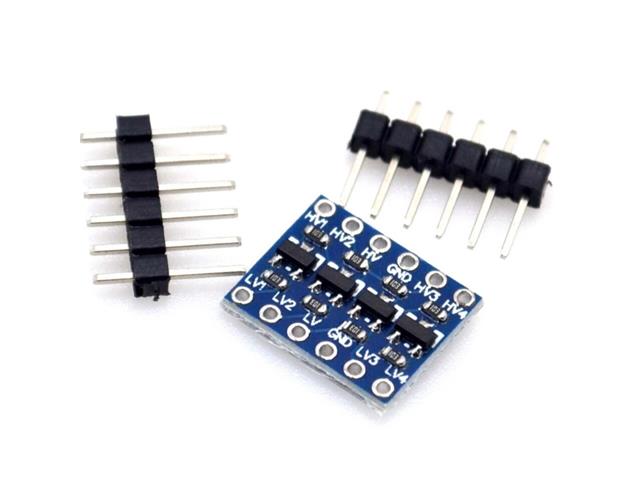

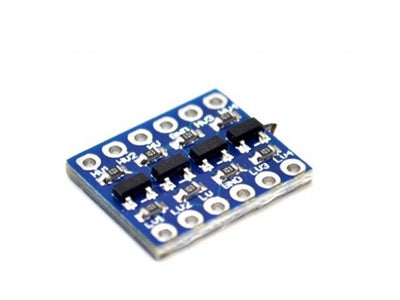

The level converter is very easy to use. The board needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using. High voltage (5V for example) to the ‘HV’ pin, low voltage (3.3V for example) to ‘LV’, and ground from the system to the ‘GND’ pin.
Features
Comes with 3.3V voltage, with power indicator Power input with anti-reverse protection, and can not provide more than 150mA of current.
To achieve direct serial 5V and 3.3V level communication.
The maximum stable communication baud rate 28800bps.
Can achieve UART, IIC, 1-wire, SPI and other bus signals 3V-5V level of the two-way conversion.
Compatibility:
AVCC 5V system power supply
ASCL 5V system SCL
ASDA connected 5V system SDA
AGND then 5V system GND
BVCC then 3V system power supply
BSCL then 3V system SCL
BSDA connected 3V system SDA
BGND then 3V system GND
Specifications
High voltage is 5V, low voltage is 3.3V
HV connect with 5V power supply
LV connect with 3.3V power supply
GND connect the power negative pole
LVx input/output 3.3V TTL
HVx input/output 5V TTL
Bi-Directional transform between LVx and TVx
Additional Information
Device
Level Converter
Type
4 Channel | IIC | I2C | Logic
Enhance your project with the HKD Logic Level Converter, a versatile 4-channel IIC I2C module that effortlessly bridges 5V and 3.3V systems. Enjoy seamless bi-directional communication for UART, IIC, and SPI protocols, ensuring stable performance with a maximum baud rate of 28800bps. Ideal for hobbyists and professionals alike, this converter simplifies your setup while providing reliable power protection. Upgrade your connectivity today!
