XH-M609 Battery Over Discharge Protection Module (Low Battery Cutout). 12-36VDC
Battery Over Discharge Protection Module
Overview

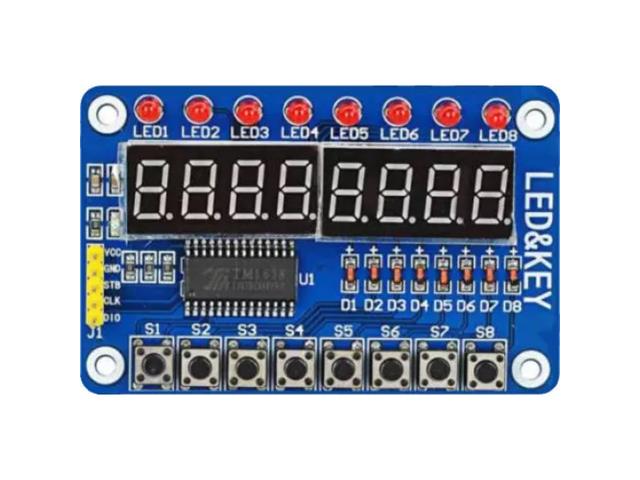

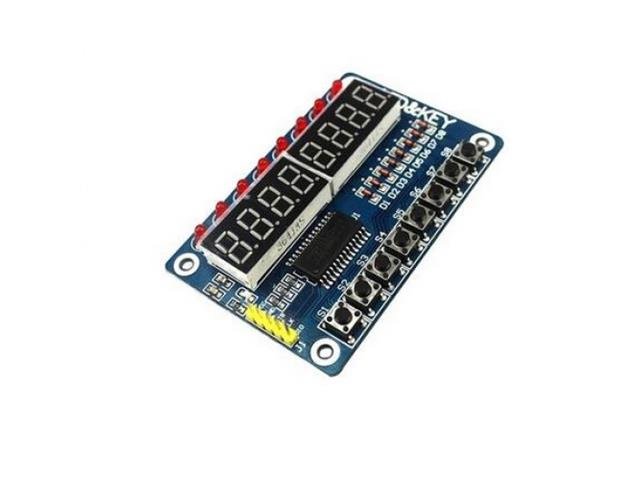

8 Bits, 8 keys, 8 LEDs, 8 digital tubes, common cathode LED digital tube. With TM1638 Chip, this module gather more than three common SCM peripheral circuits. The advantage is only three IO ports will be occupied when it drives. SCM doesn't need to work for scaning display and key scaning. It only need to read the relevant register to send display data or test button so it save MCU resources effectively. Keys are sensitive and display effectively.
Features
Size:75mmx48mm/2.95"x1.89"(inch) (approx)
The rated voltage: DC12V
Voltage range: DC7.0 V-13.6 V
The input power: 0.24 A
The rated speed: 9500 R.P.M
Temperature range:-10 - 70 ° C
Specifications
8 Bits, 8 keys, 8 LEDs, 8 digital tubes, common cathode LED digital tube.
TM1638 Chip, this module gathers more than three common SCM peripheral circuits.
The advantage is only three IO ports will be occupied when it drives.
SCM does not need to work for scanning display and key scanning.
Only needs to read the relevant register to send display data or test button so it saves MCU resources effectively.
Enhance your project with the HKD TM1638 8 DIG LED Display Module. Featuring 8 keys and LEDs, this efficient module minimizes microcontroller resource use while delivering precise display and button response. Perfect for DIY electronics, it operates within a 12V range, ensuring reliable performance in various applications. Upgrade your designs effortlessly with this compact, powerful solution!
