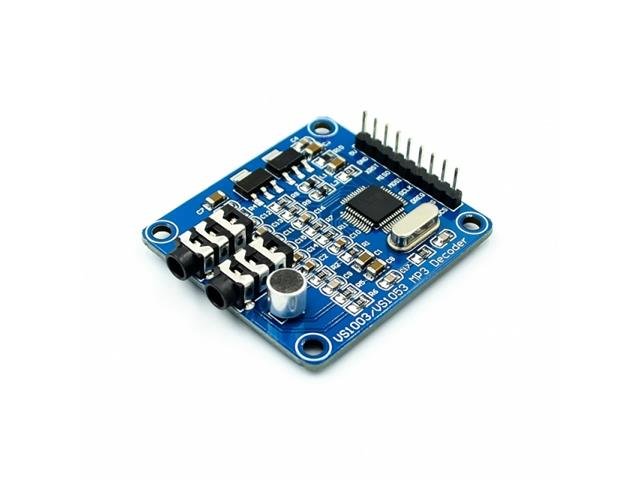

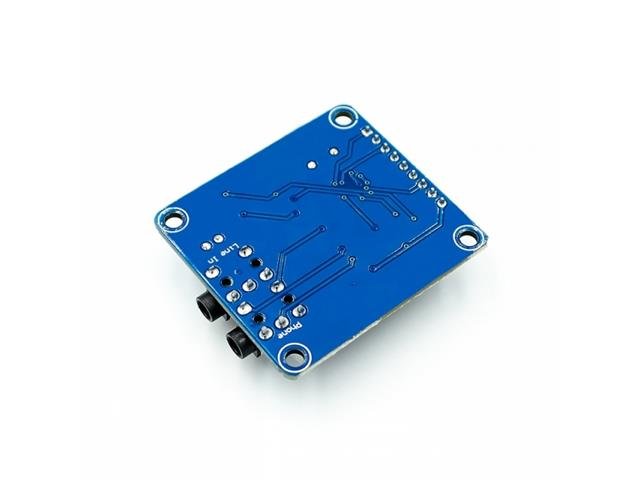

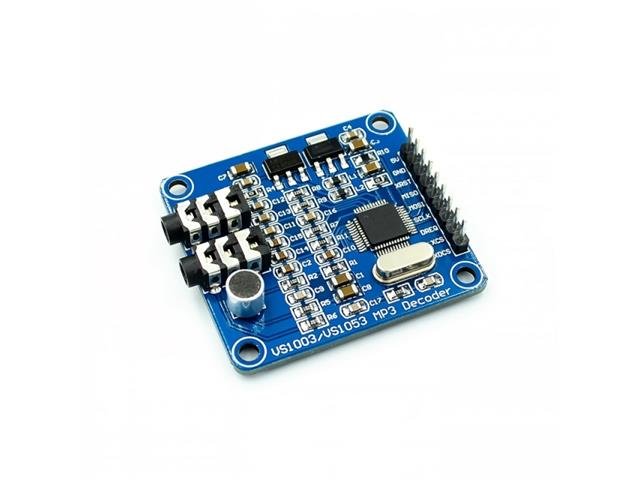

MP3 MP3+V, WMA, WAV, MIDI, SP-MIDI Decoder/Encoderdevelopment Board. Supports MP3 and WAV Streams and Recording.
SP-MIDI Decoder/Encoderdevelopment Board
Specifications
VS1003: VS1003 audio decoding formats: MP3, MP3 + V, WMA, WAV, MIDI, SP-MIDI; recording encoding format: IMA ADPCM (monaural), microphone and line input (Line input) two input methods; supports MP3 and WAV streams; low power consumption; has internal PLL clock frequency multiplier; quality stereo DAC (DAC); adjustable on-chip analog to digital converter (ADC) 16 spaces; quality stereo ear drive (30 euro); separate analog, digital, and IO power supply; serial data and control interface (SPI);
SPI interface, the control signal lines are drawn
1PCS headphone and audio output interface
1PCS microphone for recording
1PCS months line_in input interface
The power indicator
Onboard 3.3V and 2.5V LDO 1117, provides 800mA maximum current
A single power supply: +5 VDC, capacitor filter
12.288 Mhz crystal
PCB size: 50x40.5 mm
Additional Information
Device
Board
Type
SP-MIDI | Decoder/Encoderdevelopment
Unlock high-quality audio with the HKD VS1003B MP3 Decoder/Encoder. This versatile development board supports multiple formats, including MP3, WAV, and WMA, allowing for seamless streaming and recording. With low power consumption and superior sound quality, it's perfect for your audio projects. Enhance your creation with easy connectivity and reliable performance!
