7-Bit WS2812 5050 RGB LED Ring Module 23 mm (0.9 inches)
7-Bit WS2812 5050 RGB LED Ring Module
Overview

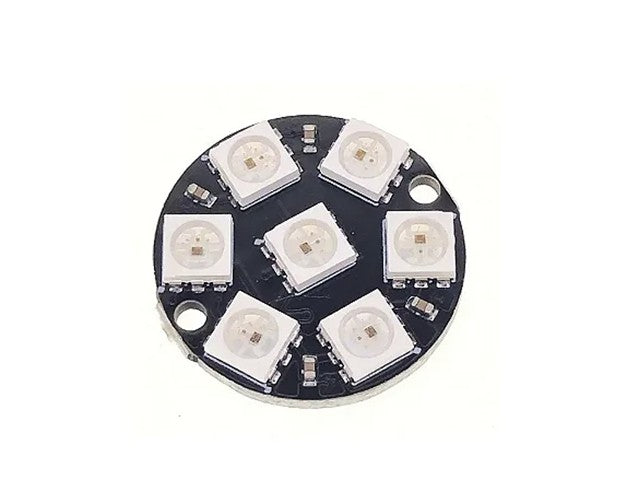

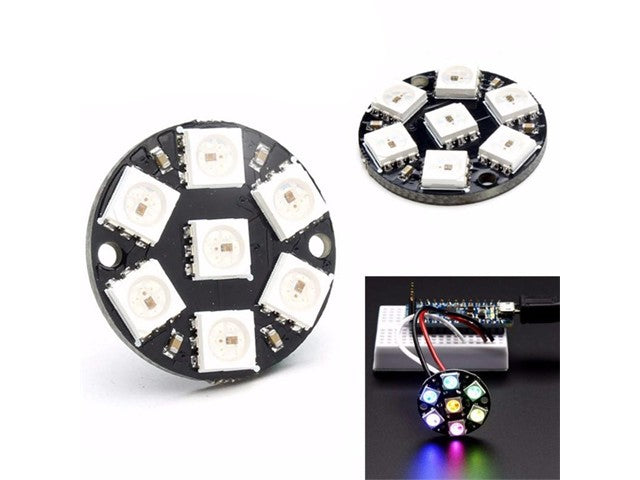

The WS2812 7-Bit RGB LED Ring Module is a circular RGB LED module for electronics and robotics projects. It uses the WS2812B LED chip and a single-wire interface for data transmission. The ring includes 7 LEDs in a circular arrangement and supports individually addressable control. Each LED can display a unique color, making the module suitable for lighting effects and visual displays. The light source model is 5050, and the working voltage is DC 4-7V.
Features
Individually addressable RGB LEDs
Single-wire data protocol
7 LED circular arrangement
WS2812B LED chip
5050 light source model
Vivid RGB color output
Specifications
LED Type: RGB LEDs with WS2812 protocol
Number of LEDs: 7 LEDs in a circular arrangement
Control: Individually addressable LEDs
Communication: Single-wire data protocol (WS2812)
Light source model: 5050
Working Voltage: 4-7V DC

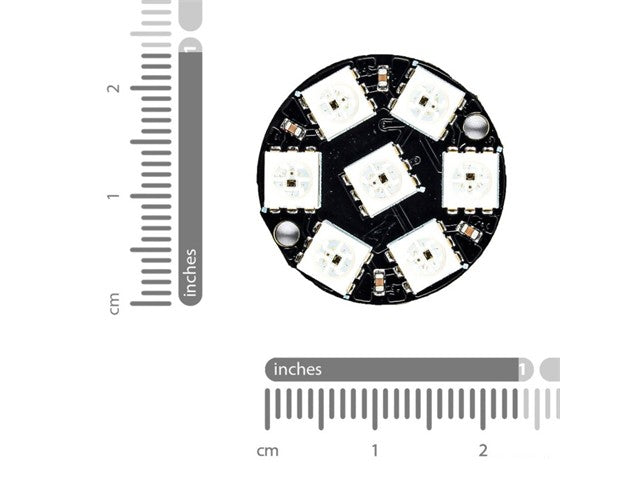

Outer diameter: 23mm
LED chip: WS2812B
How to Use WS2812 7-Bit RGB LED Ring Module
Connect the module to a compatible control system.
Provide a DC 4-7V power supply.
Send data through the single-wire interface to control the LEDs.
More Info
Multiple LED rings can be connected in series.

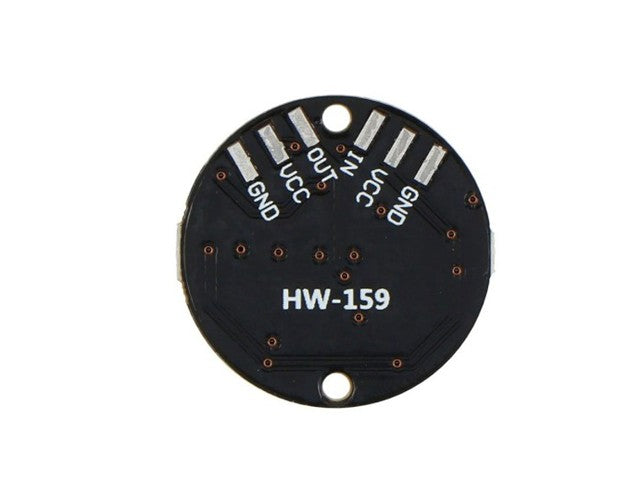

The number of pins on the LED may vary depending on import time.
Additional Information
Device
LED Ring Module
Transform your projects with the HKD WS2812 NEOPIXEL RING-7 LED! This compact 23mm RGB LED ring features 7 individually addressable WS2812B LEDs, perfect for creating dynamic lighting effects and stunning visual displays. With a single-wire data protocol and vibrant colors, it’s ideal for electronics and robotics enthusiasts looking to elevate their creations.
