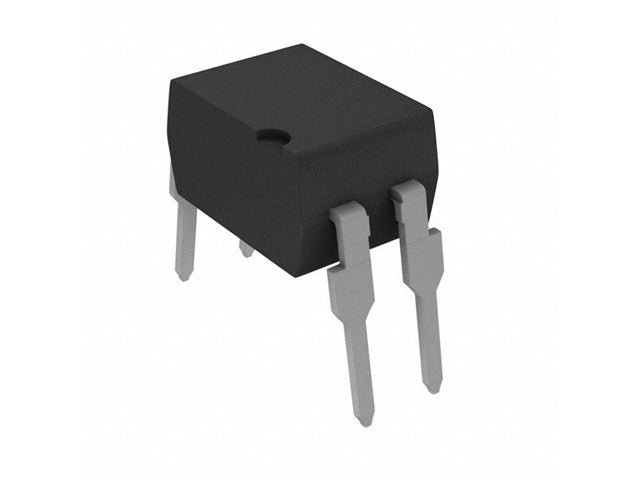

SFH628A-3

SKU: SFH628A-3

BRAND: Communica

R 22.43_{(inc VAT)}
R 19.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Opto-electronics

Type: Optocouplers, Photodetectors & Photointerrupters

Category: Opto Couplers

Single Channel Optocoupler AC Input Phototransistor Output 4P DIP CTR=50-160%

Single Channel Optocoupler AC Input Phototransistor

Specifications

Number of Channels	1
Voltage - Isolation	5300 Vrms
Current Transfer Ratio (Min)	100% @ 1 mA
Current Transfer Ratio (Max)	320% @ 1 mA
Turn On / Turn Off Time (Typ)	6 µs, 5.5 µs
Rise / Fall Time (Typ)	3.5 µs, 5 µs
Input Type	AC, DC
Output Type	Transistor
Voltage - Output (Max)	55 V
Current - Output / Channel	50 mA
Voltage - Forward (Vf) (Typ)	1.1 V
Current - DC Forward (If) (Max)	50 mA
VCE Saturation (Max)	400 mV
Operating Temperature	-55°C to +100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62 mm)
Supplier Device Package	4-DIP

Additional Information

Device

Transistor
