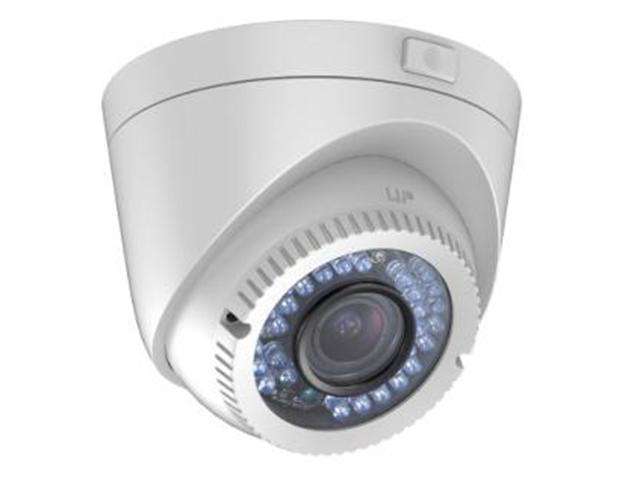

HKV DS-2CE56C2T-VFIR3

• 1.3 Megapixel high-performance CMOS
• Turbo HD output, up to 720P resolution
• 2.8~12mm vari-focal lens
• True Day/Night
• DNR, Smart IR
• Up to 40m IR distance
• IP66 weatherproof

Camera

• Image Sensor : 1/2.8" Progressive Scan CMOS
• Effective Pixels : 1280(H)*720(V)
• Min. Illumination : 0.01Lux @(F1.2,AGC ON), 0 Lux with IR
• Shutter time : 1/25(1/30)s to 1/50,000s
• Slow shutter : Support
• Lens : 2.8 - 12 mm @ F1.4, Angle of view: 80° - 27.2°
• Lens Mount : φ14
• Day& Night : ICR
• Adjustment angle : Pan : 0-360°; Tilt: 0-75°; Rotation: 0-360°
• Synchronization : Internal synchronization
• Video Frame Rate : 720p@25fps/720p@30fps
• HD Video Output : 1 Turbo HD output
• S/N Ratio : More than 52dB

General

• Working Temperature : -40°C - 60°C
• Working Humidity : 90% or less (non-condensing)
• Power Supply : 12V DC
• Power Consumption : Max. 4.5W
• Weather Proof Ratings : IP66
• IR Range : Up to 40m
• Dimension : Φ130.54 × 102.4mm
• Weight : 565g
