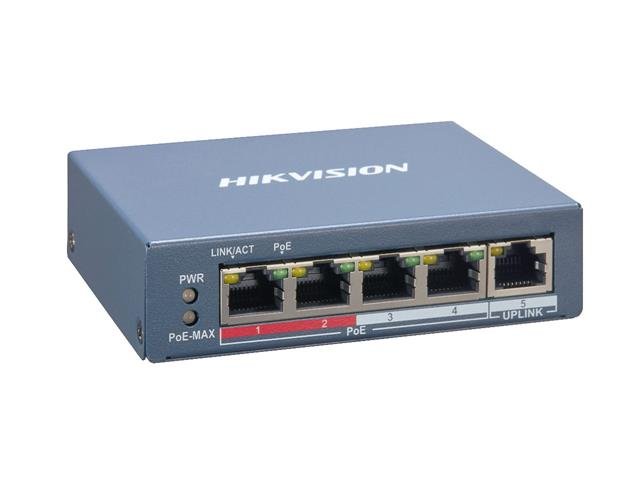

Hikvision Smart Managed 4-Port 100 Mbps PoE Switch , 4×100 Mbps PoE RJ45 ports, 1×100 Mbps network RJ45 port , IEEE 802.3at , 48VDC@1.35A , MAX POWER:65W , 105×27.6×83.1mm
4-Port 100 Mbps PoE Switch
Feature(s)
- 4 × 100 Mbps PoE RJ45 ports, 1 × 100 Mbps network RJ45 port.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.

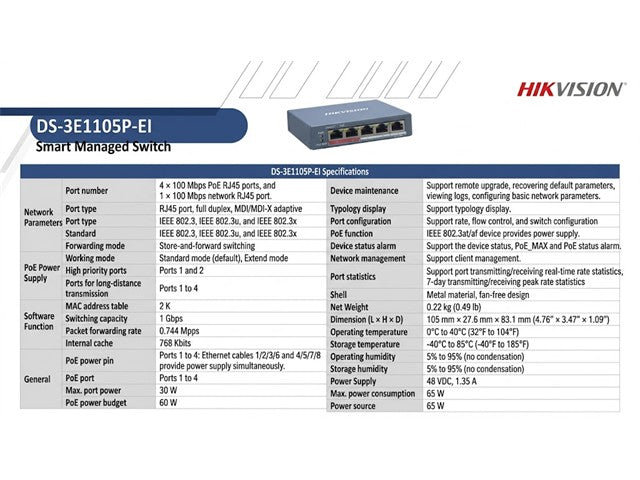

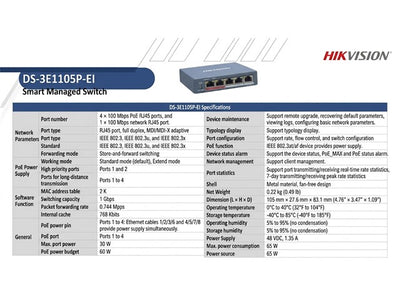

Specifications
Network Parameters
- Port number : 4 × 100 Mbps PoE RJ45 ports, and 1 × 100 Mbps network RJ45 port.
- Port type : RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard : IEEE 802.3, IEEE 802.3u, and IEEE 802.3x
- Forwarding mode : Store-and-forward switching
- Working mode : Standard mode (default), Extend mode
- High priority ports : Ports 1 and 2
- Ports for long-distance transmission : Ports 1 to 4
- MAC address table : 2 K
- Switching capacity : 1 Gbps
- Packet forwarding rate : 0.744 Mpps
- Internal cache : 768 Kbits
PoE Power Supply
- PoE power pin : Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
- PoE port : Ports 1 to 4
- Max. port power : 30 W
- PoE power budget : 60 W
Software Function
- Device maintenance : Support remote upgrade, recovering default parameters, viewing logs, configuring
- basic network parameters.
- Typology display : Support typology display.
- Port configuration : Support rate, flow control, and switch configuration
- PoE function : IEEE 802.3at/af device provides power supply.
- Device status alarm : Support the device status, PoE_MAX and PoE status alarm.
- Network management : Support client management.
- Port statistics : Support port transmitting/receiving real-time rate statistics, 7-day transmitting/receiving
- peak rate statistics
General
- Shell : Metal material, fan-free design
- Net Weight : 0.22 kg (0.49 lb)
- Dimension (L × H × D) : 105 mm × 27.6 mm × 83.1 mm (4.76” × 3.47” × 1.09”)
- Operating temperature : 0°C to 40°C (32°F to 104°F)
- Storage temperature : -40°C to 85°C (-40°F to 185°F)
- Operating humidity : 5% to 95% (no condensation)
- Storage humidity : 5% to 95% (no condensation)
- Power Supply : 48 VDC, 1.35 A
- Max. power consumption : 65 W
- Power source : 65 W
Downloads
Additional Information
| Device |
Switch |
| Type |
4-Port | 100 Mbps | PoE |

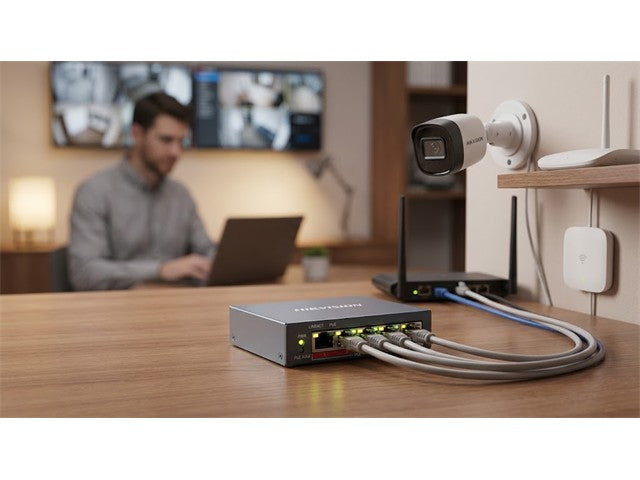

Enhance your network with the HKV DS-3E1105P-EI, a smart 4-port 100 Mbps PoE switch designed for efficient power and data delivery. With 4 PoE ports and advanced features like surge protection and network health monitoring, this switch ensures reliable performance for your devices. Experience seamless connectivity and easy management, making it the perfect solution for your home or business network needs.
