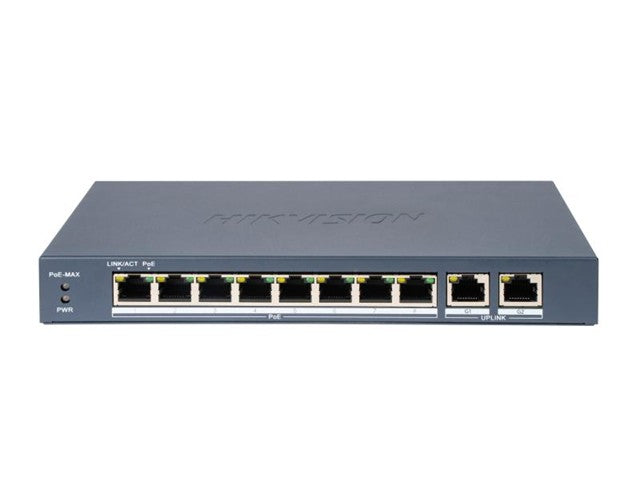

• 8 × 10/100 Mbps PoE ports,2 × Gigabit RJ45 port
• Total PoE Power Budget 110 W
• Support 802.1Q VLAN
• Support PoE watchdog to detect and restart the cameras that do not respond
• Support STP/RSTP loop prevention
• Support cable detection to locate failure
• Up to 300 m Long Range PoE Transmission
• 6 kV Surge Protection

General

• Shell : Metal material
• Net Weight : 0.54 kg (1.19 lb)
• Gross Weight : 1.08 kg (2.38 lb)
• Dimensions (W × H × D) : 217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
• Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity : 5% to 95% (no condensation)
• Relative Humidity : 5% to 95% (no condensation)
• Power Supply : DC54 V,2.22 A
• Installation Mode : Desk-Mounted,Wall-Mounted
• Max. Power Consumption : 120 W
• Power Consumption in Idle : 10 W
• Surge Protection : 6 kV

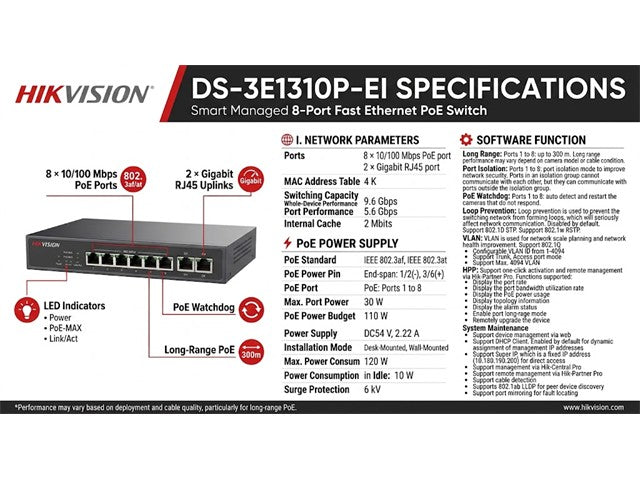

Network Parameters

• Ports : 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
• MAC Address Table : 4 K
• Switching Capacity
  • Whole-Device Performance: 9.6 Gbps
  • Port Performance: 5.6 Gbps
• Internal Cache : 2 Mbits

Software Function

• Long Range
• Ports 1 to 8: up to 300 m.
• Long range performance may vary depend on camera model or cable condition.
• Port Isolation
• Ports 1 to 8: port isolation mode to improve network security
• Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
• PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
• Loop Prevention
  • Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
  • Support 802.1D STP.
  • Suppport 802.1w RSTP.
• VLAN
  • VLAN is used for network scale planning and network health improvement.
  • Support 802.1Q.
  • Configurable VLAN ID from 1-4094.
  • Support Trunk, Access port mode.
  • Support Max. 4094 VLAN.
• HPP
  • Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
    • Display the port rate.
    • Display the port bandwidth utilization rate.
    • Display the PoE power usage.
    • Display topology information.
    • Display the alarm status.
    • Restart ports and devices.
    • Enable port long-rage mode.
    • Remotely upgrade the device.
• System Maintenance
  • Support device management via web.
  • Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
  • Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
  • Support management via Hik-Central Pro.
  • Support remote management via Hik-Partner Pro.
  • Support cable detection.
  • Supports 802.1ab LLDP for peer device discovery.
  • Support port mirroring for fault locating.

PoE Power Supply

• PoE Standard : IEEE 802.3af,IEEE 802.3at
• PoE Power Pin : End-span: 1/2(-), 3/6(+)
• PoE Port : PoE: Ports 1 to 8
• Max. Port Power : 30 W
• PoE Power Budget : 110 W

1. Datasheet - HKV DS-3E1310P-EI
