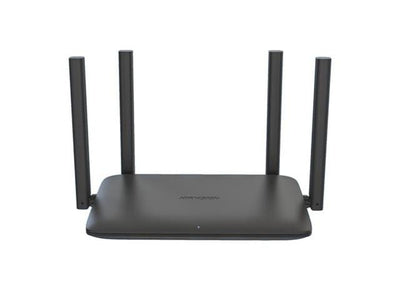

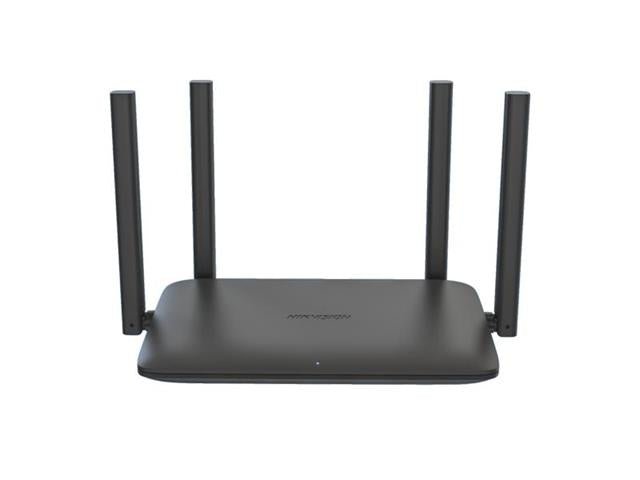

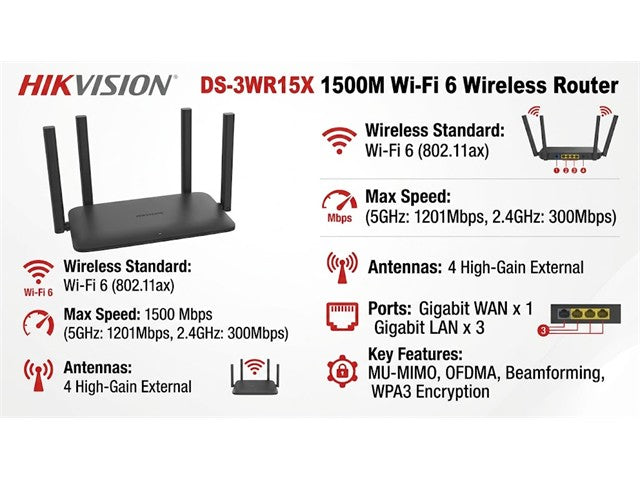

Hikvision Wireless Router 1500Mbps WiFi6, 2.4GHz@300Mbps, 5GHz@1201Mbps, MU-MIMO Supported, 4xHigh Gain Antennas, 1×10/100/1000Mbps, 3×10/100/1000Mbps, WPA2-PSK, WPA/WPA2-PSK, WPA2-PSK/WPA3-SAE Supported, Web, HIK-Connect APP, PSU12V@1A
1500Mbps WiFi6 Wireless Router
Features
- 1500Mbps Wi-Fi 6
- Wired Wireless Dual Gigabit
- Dual Band in One and 5G First
- APP Management
Specifications
General
-
Product Dimension (W × H × D) : 241.3 mm × 140.8 mm × 156.3mm
-
Package Dimension (W × H × D) : 380 mm × 285 mm × 73 mm
-
Net Weight : 0.245 kg
-
Packing List
- 1500Mbps Wi-Fi6 Router x 1
- Power Supply Adaptor × 1
- CAT5e Network Cable × 1
- Quick Start Guide × 1
- Regulatory Compliance and Safety Information × 1
-
Packing Method : Single pack
-
Working Temperature : 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
-
Working Humidity : 10% to 90% RH non-condensing
-
Storage Temperature : -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
-
Storage Humidity : 5% to 95% RH non-condensing
-
Installation Mode : Desktop installation
-
Max. Power Consumption : ≤ 10 W
-
Gross Weight : 0.790 kg
Wireless Parameter
-
Data Rate
- ≤ 1501 Mbps
- 5GHz: 1201Mbps
- 2.4GHz: 300Mbps
-
Wireless Standard
- IEEE 802.11a/n/ac/ax @5GHz
- IEEE 802.11b/g/n @2.4GHz
-
Transmitting Power
- CE:
- ＜20dBm(2.4GHz)
- ＜23dBm(5GHz)
-
Wireless Performance
- MU-MIMO supported
- TxBeamforming supported
- Receiving Sensitivity
- 5GHz:
- 2.4GHz:
- Antenna : 4 high gain antennas
Hardware Parameter
-

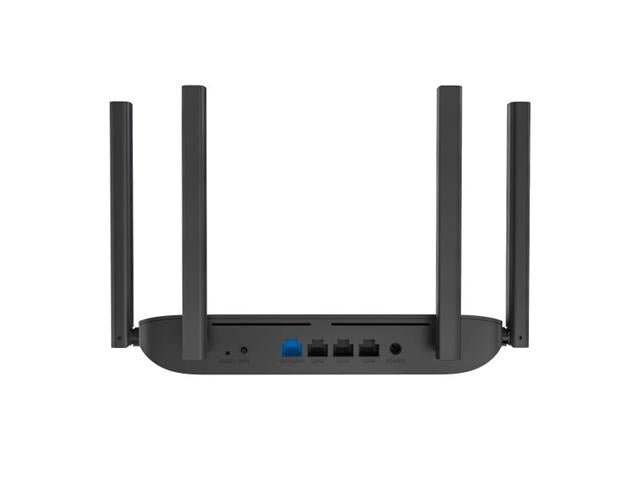

Network Interface
- 1 × 10/100/1000 Mbps Adaptive WAN Port
- 3 × 10/100/1000 Mbps Adaptive LAN Ports
-
LED Indicator : LED indicator
-
Reset : Reset button
-
Power Supply Method : Power Supply Adapter
-
Power Specifications : DC 12 V, 1 A
Software Function
-
Application function
- Routing Mode, Wireless Relay Mode, Wired Bridge Mode supported
- DHCP Server supported
- Guest Network Configuration supported
- Signal Adjustment supported
- WiFi Schedule supported
- Daylight Saving Time supported
-
Security ModeWPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE supported
-
Security Mechanism
- Support fast and secure WPS connection
- Support hiding wireless network name
- Support controlling terminal network connection
- Support firewalls
-
Management Method : Web, HIK-Connect APP
-
Upgrade : Web, App Update and Upgrade
-
System Log : System log
Downloads
Additional Information
| Device |
Router |
| Type |
1500Mbps | WiFi6 | Wireless |
