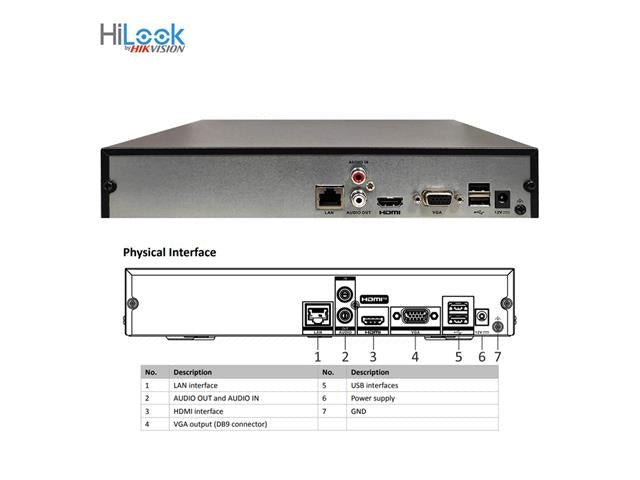

HLK NVR-116MH-C
SKU: HLK NVR-116MH-C
BRAND: Hilook
R 1,795.00 (inc VAT) R 1,560.87 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Hilook 16CH 1U NVR H2.65+ 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF, 1 SATA Iinterface (up to 8TB Capacity), 1xRJ45 10/100/1000Mbps, 2×USB2.0, VGA, HDMI Video Output at up to 4K Resolution, 12VDC 1.5A
16CH 1U NVR
Feature(s)
Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
Up to 160 Mbps incoming bandwidth
Specifications
Video and Audio
IP Video Input : 16-ch
HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output : 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Incoming Bandwidth : 160 Mbps
Outgoing Bandwidth : 80 Mbps
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
Decoding Format : H.265+,H.265,H.264+,H.264
Decoding Capability : 4-ch@1080p
Synchronous playback : 16-ch
Recording Resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Network
Network Protocol : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
RAID
Auxiliary Interface
SATA : 1 SATA interface
Capacity : Up to 8TB capacity for each disk
USB Interface : 2 × USB 2.0
General
Power Supply : 12 VDC, 1.3 A
Consumption : ≤ 10 W
Working Temperature : -10 to +55º C (+14 to +131º F)
Working Humidity : 10 to 90 %
Chassis : 1U chassis
Dimension (W × D × H) : 265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
Weight : ≤ 1 kg (2.2 lb)
Downloads
Additional Information
Device
NVR
Type
16CH | 1U
Upgrade your surveillance system with the HLK NVR-116MH-C, a powerful 16-channel NVR that supports up to 8MP resolution and offers seamless 4K video output. With advanced H.265+ compression, enjoy high-quality recordings while maximizing storage efficiency. Ideal for both home and business security, this user-friendly NVR ensures reliable performance with an incoming bandwidth of 160 Mbps. Protect your property with cutting-edge technology and peace of mind!
