1. Solderless breadboard : AD-200 | Interconnected nickel plated contact socket with 1896 tie points, fitting all components with DIP sizes and solid leads AWG #22-30 (0.3~0.8mm)
2. DC power supply :
Variable DC power : Output voltage 0~+15V ±10% and 0~-15V ±10%
Maximum output current : 300 mA.
Line regulation < 0.05%V(at 25°C)
Load regulation < 30 mV(at 25°C)
+5V DC power supply : Output voltage +5V ±10% (no load to full load).
Maximum output current 1 Amp.
-5V DC Power Supply : Output voltage -5V ±10%
Maximum output current 100 mA.
All DC power supplies equipped with short-circuit protection
3. Function generator :
Frequency ranges (6 ranges):
0.1~2Hz
1~20Hz
10~200Hz
100~2KHz
1KHz~20KHz
10KHz~200KHz
Sine wave output : 0~5Vpp ±10% variable
Triangle wave output : 0~5Vpp ±10% variable
Square wave output : 0~15Vpp ±10% variable
TTL mode output : +5V ±10%
4. Voltmeter : 0~30VDC full scale, class 2.5, impedance=320Kohm
5. Ampere meter : 0~100µ A full scale, class 2.5, impedance = 1Kohm
6. Universal counter
(1) Frequency range : 1Hz~99.999999MHz ; 10Hz~100.00000 MHz
(2) Period range TH & TL : 0.01µs~999999.99µs ; 1µs~99999999µs
(3) Input signal : TTL or CMOS level or any level (Vmin = +2.3Vp ±10%)
(4) Display : 8-digit 7-segment LED display
(5) Counter switch : External/internal
7. Pin tip/banana jack : 2pcs
8. Pin tip/BNC jack : 2pcs
9. 2 positions slide switch : 2pcs
10. 3 positions slide switch : 1pc
11. Potentiometer :
VR1 = 1Kohm
VR2 = 100Kohm
12. 6 positions rotary switch : 1pc
13. Speaker : 2¼”, 8ohm
14. Accessories : Power cord | User manual
15. Dimensions : 420 x 360 x 200 mm (L x W x H)
16. Weight : 4.2kg

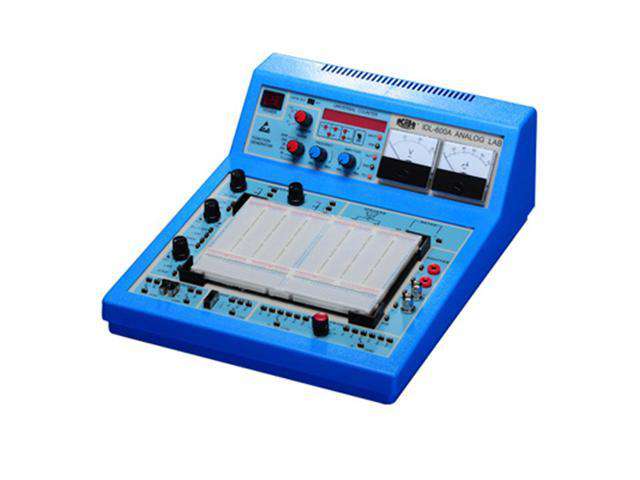

Elevate your electronics projects with the IDL600 Analog Lab Training System. Featuring a versatile solderless breadboard, adjustable DC power supply, and multifunctional function generator, this essential tool is perfect for students and hobbyists alike. Enjoy precise measurements with built-in voltmeter and ammeter, all in a compact design for easy setup and portability. Unlock your creativity and build with confidence!
