IDL800

SKU: IDL800

BRAND: Communica

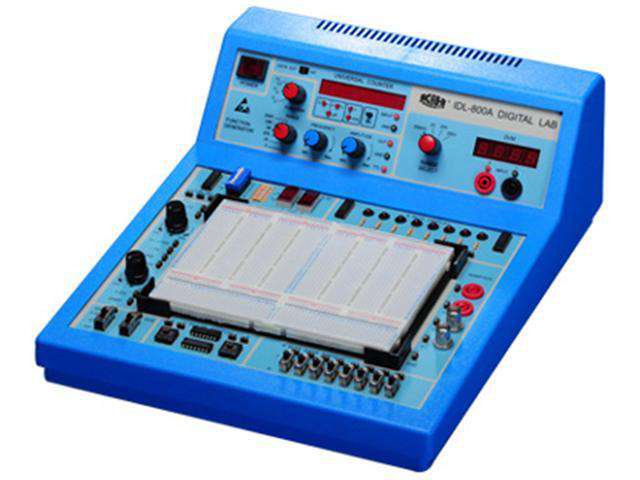

Digital Lab Training System

Overview

Features

Specification

  • 1. Solderless breadboard : AD-200 - Interconnected nickel plated contact socket with a total of 1896 tie points fits all components with DP size and solid wire in diameter of AWG #22-30 (0.3 ~ 0.8 mm)
  • 2. DC power supply
    • Variable DC power :
      • Positive output voltage : 0 ~ +15V±10%
      • Negative output voltage : 0 ~ -15V±10%
      • Maximum output current : 300 mA
      • Line regulation : < 0.05% / V (Ta=25°C)
      • Load regulation : < 30mV (Ta=25°C)
    • Fixed power supply :
      • Positive output voltage : +5V±10%
      • Maximum output current : 1Amp
      • Line regulation : < 50mV
      • Load regulation : <100mV
      • Negative output voltage : -5V±10%
      • Maximum output current : 100mA
      • Line regulation : < 25mV
      • Load regulation : < 30mV
    • All DC power supplies with short circuit protection
  • 3. Function generator :
    • Frequency ranges (6 ranges) :
      • 0.1Hz ~2 Hz
      • 1 Hz ~20 Hz
      • 10 Hz ~ 200 Hz
      • 100 Hz ~ 2K Hz
      • 1KHz ~20K Hz
      • 10KHz ~200K Hz
    • Sine wave output : 0 ~ 5 Vpp 10% variable
    • Triangle wave output : 0~5Vpp 10% variable
    • Square wave output : 0 ~ 15 Vpp 10% variable
    • TTL mode output : +5V 10%
  • 4. Digital voltmeter :
    • 3½ digits LED display 4 ranges:
      • 0 ~ 199.9V full scale
      • 0 ~ 19.99V full scale
      • 0 ~ 1.999V full scale
      • 0 ~ 199.9mV full scale
    • Input impedance : 10Mohm for any range
  • 5. Universal counter
    • (1) Frequency range : 1Hz~99.999999MHz | 10Hz~100.00000MHz
    • (2) Period range TH&TL : 0.01us ~ 99999999us
    • (3) Input sig al:TTL or CMOS level or any level(Vmin=+2.3Vp 10%)
    • (4) Display : 8-digit 7-segment LED display
    • (5) Counter switch : External/internal
  • 6. Two digits of 7 segment LED display : Common cathode operation
  • 7. Four point tip / banana socket / BNC socket exchange adapters
  • 8. Eight buffered LED displays
  • 9. Eight data switches
  • 10. Two function switches
  • 11. Two pulse switches
  • 12. Dimensions : 480 x 360 x 200 mm (L x W x H)
  • 13. Weight : 4.2kg

-->
