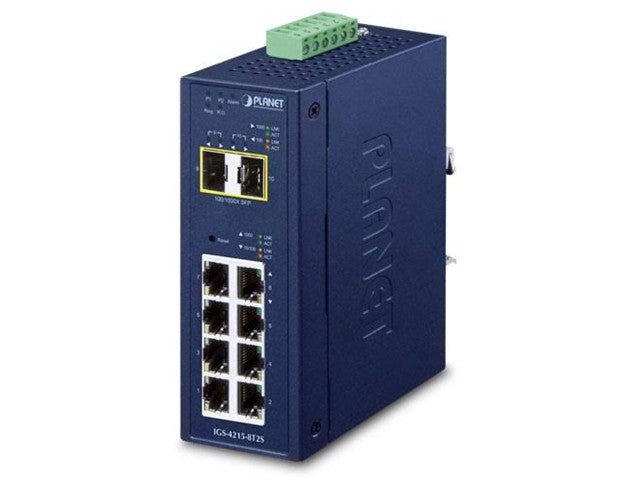

Planet Industrial L2/L4 8 Port 10/100/1000t + 2 Port 1g/2.5g Sfp Managed Switch Ip30
Planet Industrial Managed Switch
Specifications
- Product Type: Industrial Layer 2/Layer 4 Managed Gigabit Ethernet Switch
- Number of Ethernet Ports: 8 × 10/100/1000BASE-T RJ45
- Fibre Optic Ports: 2 × 100/1000BASE-X SFP slots
- Ethernet Port Type: Auto-MDI/MDI-X
- Switching Architecture: Store-and-forward
- Switching Capacity: 20 Gbps, non-blocking
- Packet Forwarding Rate: 14.8 Mpps (64-byte packets)
- MAC Address Table: 8K entries
- Packet Buffer: 4.1 Mbit
- Jumbo Frame Support: Up to 9 KB
- VLAN Support: IEEE 802.1Q, Q-in-Q, Voice VLAN, Protocol VLAN, Private VLAN and GVRP
- Maximum VLAN Groups: 256
- Link Aggregation: IEEE 802.3ad LACP and static trunking
- Spanning Tree Protocols: STP, RSTP and MSTP
- Network Management: Web-based management, IPv4/IPv6 management and SNMP
- Industrial Ring Protection: ERPS (Ethernet Ring Protection Switching)
- Flow Control: IEEE 802.3x full-duplex flow control and half-duplex backpressure
- Power Supply: Dual 9–48 V DC or 24 V AC
- Redundant Power Inputs: Yes
- Power Failure Alarm: Relay output, rated 1 A at 24 V DC
- Power Consumption: Maximum 6.93 W (DC input, full load)
- Operating Temperature: −40°C to +75°C
- Enclosure Material: Metal
- Ingress Protection Rating: IP30
- ESD Protection: ±6 kV contact discharge and ±8 kV air discharge
- Mounting Type: DIN rail or wall mounting
- Dimensions (W × D × H): 50 × 87.8 × 135 mm
- Weight: Approximately 510 g

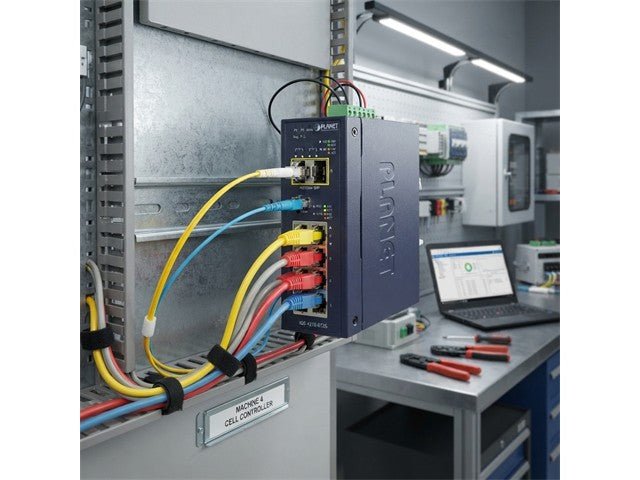

- Application: Industrial Ethernet networking, factory automation, surveillance systems and fibre-optic network connections.
Downloads
Additional Information
| Device |
Switch |
| Type |
Planet | Industrial | Managed | Switch |
Enhance your industrial network with the IGS-4215-8T2S Managed Switch, featuring 8 Gigabit Ethernet ports and 2 SFP slots. Designed for rugged environments, it offers reliable performance with a 20 Gbps switching capacity, ensuring seamless data flow for factory automation and surveillance systems. With advanced VLAN support and dual power inputs, this switch guarantees maximum uptime and flexibility for your networking needs.
