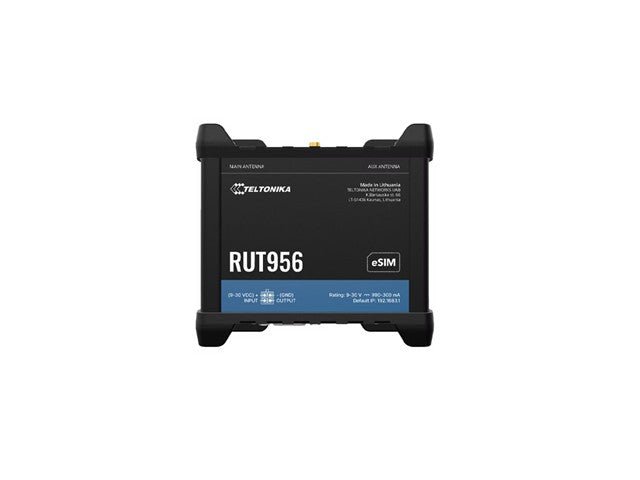

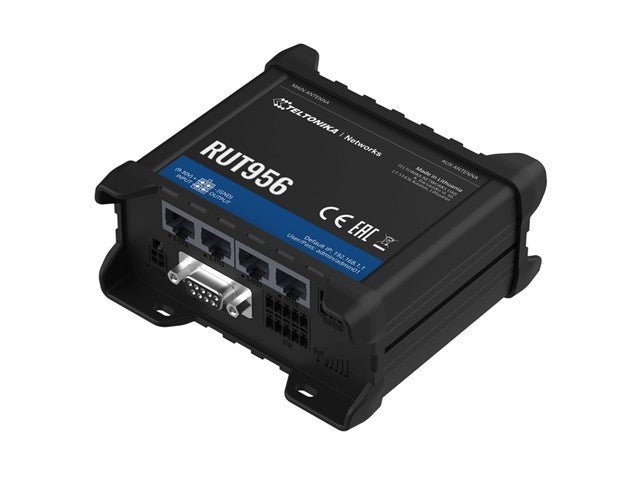

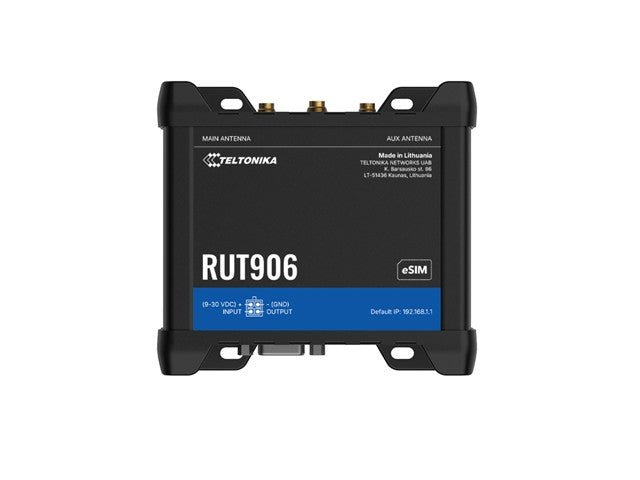

Teltonika Industrial RS232/RS485 4G Dual SIM Router WiFi 4 , Sim Slots:2 , USB2.0 , 4×RJ45 10/100Mbps , 4G LTE 2.4GHz , 128MB RAM/16MB Flash , Power I/P:9~30VDC , Antennas:2xSMA For LTE , 2xRP-SMA For WiFi , 1xSMA For GNSS , 110×50×100mm , IP30
Teltonika Industrial 4G Dual SIM Router WiFi

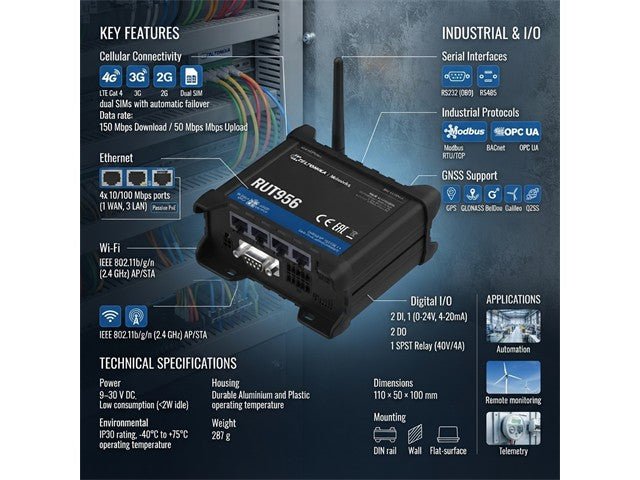

Specifications
- Product Type: Industrial 4G LTE Cellular Router
- Cellular Connectivity: 4G LTE Cat 4, 3G and 2G
- Maximum LTE Data Rate: 150 Mbps download / 50 Mbps upload
- SIM Support: Dual SIM with automatic failover; eSIM availability depends on the model variant
- Ethernet Ports: 4 × RJ45 10/100 Mbps
- WAN Configuration: 1 × WAN port and 3 × LAN ports; configurable network functions
- Wi-Fi Standard: IEEE 802.11b/g/n (Wi-Fi 4), 2.4 GHz
- Wi-Fi Modes: Access Point (AP) and Station (STA)
- Serial Interfaces: 1 × RS232 (DB9) and 1 × RS485
- USB Interface: 1 × USB Type-A
- Digital Inputs: 2 × inputs via the industrial I/O connector, plus 1 × additional digital input on supported hardware revisions
- Analog Input: 1 × 0–24 V, with 4–20 mA capability
- Digital Outputs: 2 × outputs via the industrial I/O connector, plus 1 × additional digital output on supported hardware revisions
- Relay Output: 1 × SPST relay, rated up to 40 V / 4 A
- GNSS Support: GPS, GLONASS, BeiDou, Galileo and QZSS
- Network Protocols: IPv4, IPv6, TCP/IP, UDP, DHCP, DNS, VPN and MQTT
- Industrial Protocols: Modbus RTU/TCP, BACnet and OPC UA support
- Remote Management: RutOS web interface and Teltonika Remote Management System (RMS) support
- Power Supply: 9–30 V DC
- Passive PoE: Supported on LAN1, 9–30 V DC; not compatible with IEEE 802.3af/at/bt PoE
- Power Consumption: Less than 2 W idle; less than 7 W maximum
- Operating Temperature: −40°C to +75°C
- Operating Humidity: 10–90% RH, non-condensing
- Ingress Protection Rating: IP30
- Housing Material: Aluminium housing with plastic panels
- Mounting Options: DIN rail, wall mounting or flat-surface mounting (mounting accessories may be required)
- Dimensions (W × H × D): 110 × 50 × 100 mm
- Weight: Approximately 287 g

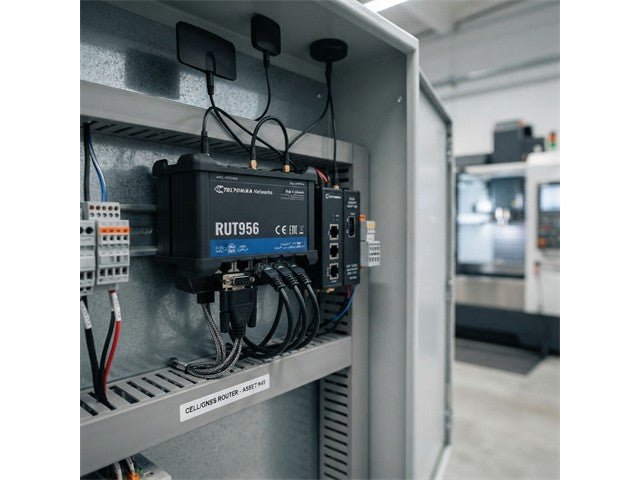

- Applications: Industrial automation, remote equipment monitoring, telemetry, smart utilities and cellular backup connectivity.
Downloads
Additional Information
| Device |
Router WiFi |
| Type |
Teltonika | Industrial | 4G | Dual | SIM | Router | WiFi |
Experience seamless connectivity with the RUT956 Industrial 4G Dual SIM Router. Designed for reliability, it supports automatic failover, ensuring uninterrupted internet access for industrial automation and remote monitoring. With dual SIM slots, robust WiFi capabilities, and extensive protocol support, this router is perfect for smart utilities and telemetry applications. Upgrade your network efficiency today!
