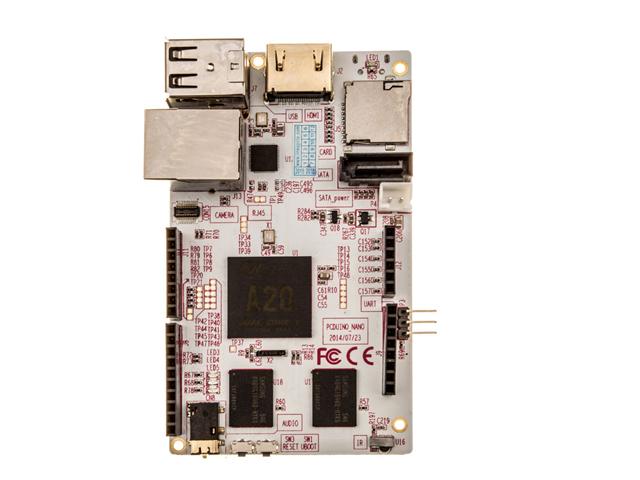

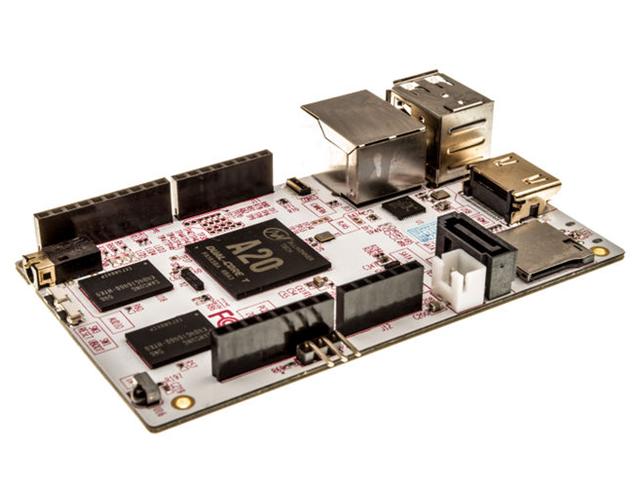

ITE PcDuino V3 Nano

Overview

 pcDuino3 Nano is a high performance, cost effective single board computer. It runs operation systems such as Ubuntu Linux and Android. pcDuino3Nano has HDMI interface to output its graphic desktop screen. It could support multi-format 1080p 60fps video decoder and 1080p 30fps H.264 and MPEG4 video encoder with its built-in hardware video processing engine. It targets specially the fast growing demands from the open source community. pcDuino3 provides easy-to-use tool chains and is compatible with the popular Arduino ecosystem such as Arduino Shields.

Features

Specification



  • CPU : AllWinner A20 SoC, 1GHz ARM Cortex A7 Dual Core
  • GPU : OpenGL ES2.0, OpenVG 1.1, Mali 400 Dual Core
  • DRAM : 1GB
  • Onboard Storage : 4GB Flash, microSD card (TF) slot for up to 32GB
  • Video Output : HDMI 1.4 with HDCP support
  • OS : Ubuntu 12.04: Android 4.2

Arduino extension interface

  • Arduino sockets, same as Arduino UNO
  • 14xGPIO, 2xPWM, 6xADC, 1xUART, 1xSPI, 1xI2C
  • Network interface : Ethernet 10M/100M/1Gbps
  • Audio out : 3.5mm analog audio interface
  • IR : IR receiver
  • SATA : SATA Host socket
  • Camera : CSI
  • USB : 2 x USB host, 1xUSB OTG
  • Power : 5V, 2000mA
  • Overall Size : 3 5/8 ” x 2 1/8″

Software Specifications

OS

  • Ubuntu 12.04
  • Android 4.2
  • Language : English

API

  • All the arduino shield pins are accessible with the provided API
  • It consists of API to access the following interfaces:
  • UART
  • ADC
  • PWM
  • GPIO
  • I2C
  • SPI

Programming language support

  • C, C++ with GNU tool chain
  • Java with sta
