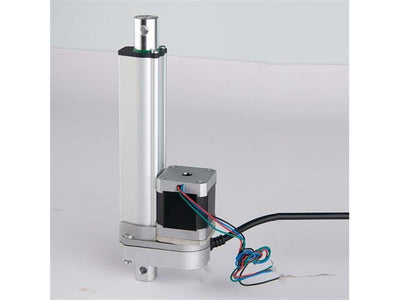

LKT STEPPER ACTUATOR 100MM 700N

Name: LKT STEPPER ACTUATOR 100MM 700N - Communica [Part No: LKT STEPPER ACTUATOR 100MM 700N]
Brand: Communica
SKU: LKT STEPPER ACTUATOR 100MM 700N
Price: 1043.48 ZAR
Availability: OutOfStock

SKU: LKT STEPPER ACTUATOR 100MM 700N

BRAND: Communica

Sold Out
R 1,200.00_{(inc VAT)}
R 1,043.48_{(ex VAT)}

Collections: Electromechanical

Type: Solenoids & Actuators

Category: Stepper Actuators

Stepper Motor Linear Actuator. Stroke 100mm. Speed 8mm/S. Load 700N. Installation Size (Retracted) 205mm. Voltage 12 – 24VDC. Protection Grade IP43. Recommended Stepper DRIVER-HKD STEPPER MOTOR DRIVER M542

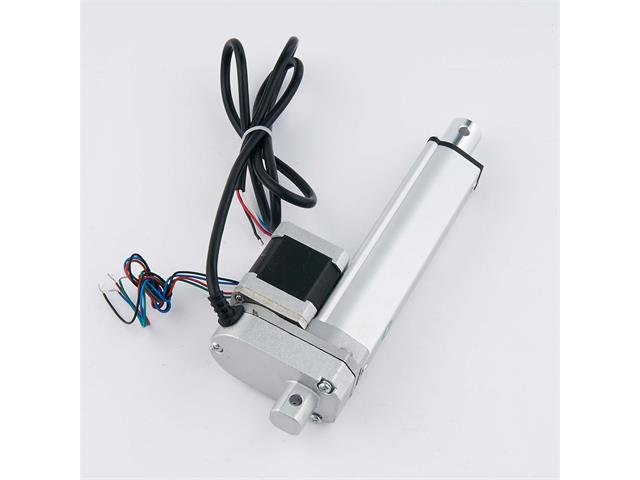

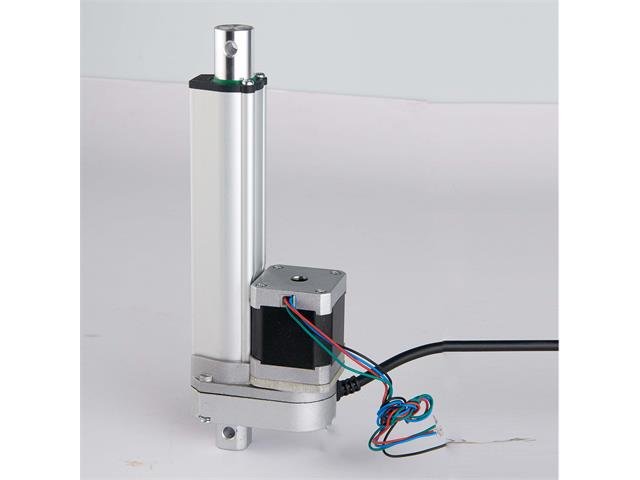

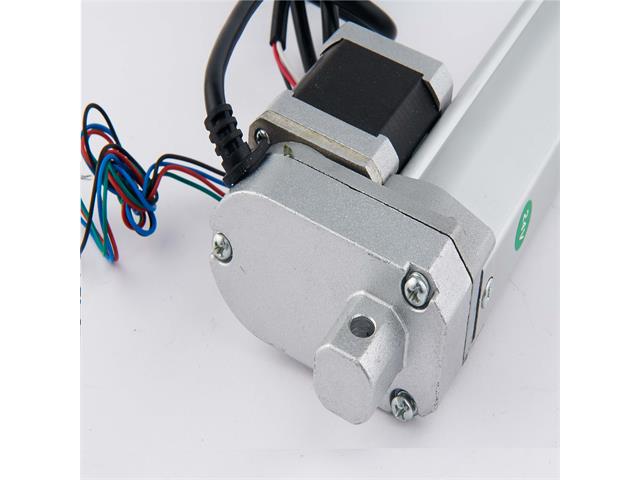

Stepper Motor Linear Actuator

Specifications

Actuator

Travel or Stroke (S) Length: 100mm
Voltage: 12Vdc to 24Vdc (power supply input to servo drive)
Torque: 700N
Speed: 8mm/sec (no load)
IP43

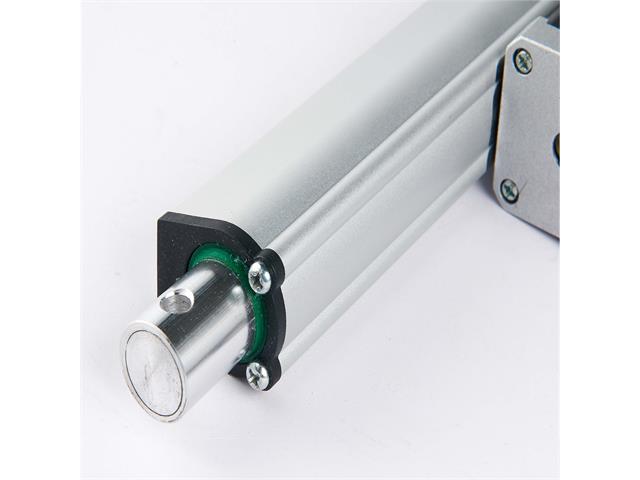

Aluminium outer tube and stroke rod
Duty cycle: 10%

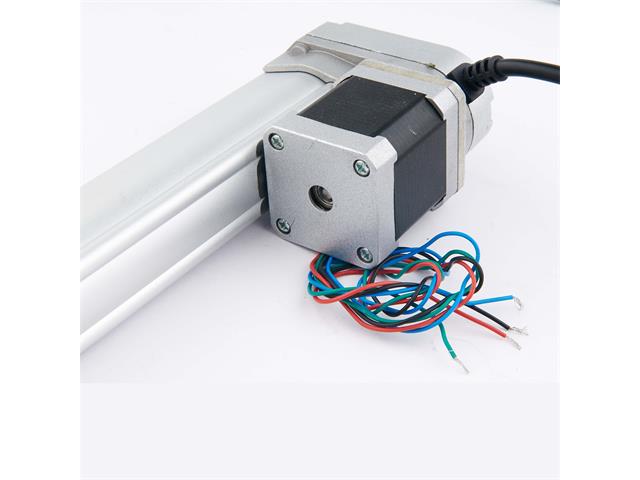

Stepper Motor

Phase: 2
Step angle: 1.8 degrees (200 steps per revolution)
Voltage: 2.8V
Current: 1.68A
Resistance: 1.65 ohms
Inductance: 2.3mH
Holding torque: 5 kg.cm
Insulation class: B

Stepper motor drive

Required, but not included
HKD STEPPER MOTOR DRIVER M542 is recommended

Stroke (S) : 100mm
Installation Size (L) {Retracted} : 205mm
Max - Installation {Extended} : 305
Weight (KG) : 0.79kg

Additional Information

Device	Linear Actuator
Type	Stepper Motor
