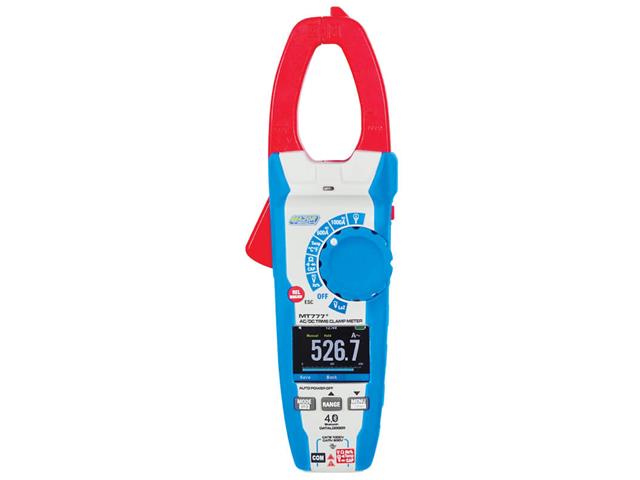

The MT777 is a CAT IV 600V, 6000 count True RMS 1000A AC/DC digital clamp meter with an analogue bargraph indication on a TFT colour display, providing fast sampling time with high accuracy. The meter has a built in Data logger with 100 Graph Data review, using Bluetooth, the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings. The VFD function allows the user to measure stable voltage in high frequency applications, while the Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Hold. Using the optional MT740 True RMS Flexible Clamp Adaptor, the measuring range can be extended to measure 3000A AC. Added features is Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.

Accessories:
Test Leads
Type-K Wire Probe
Type-K Adaptor
Carrying Case
3 x AAA Batteries
Instruction Manual

Note:
Bluetooth Connect:

1. Turn on the Bluetooth function on the instrument using Menu Button
2. Turn on the Bluetooth of the Smartphone, press the Meterbox Pro icon and enter into the home interface. Then press Connect Device icon on the home interface, Bluetooth device name will appear.
3. Touch the device name listed in Bluetooth devices list to connect the meter

Detailed information about Meterbox Pro available on the APP help file.

Meterbox Pro for Android:
Please search in Google Play with keyword Meterbox Pro, download and run

Meterbox Pro for IOS:
Please search in the Apple Store with keyword Meterbox Pro, download and run

• CAT IV 600V and CAT III 1000V
• 6000 count TFT colour LCD display
• Ø33mm Cable Clamp size
• Measurement of AC, AC+DC TRMS and DC voltage up to 1000V
• Temperature Measurement -40°C to 1000°C
• Capacitance to 100mF
• Trend Capture Function
• Bluetooth 4.0
• 100 Graph Data Review
• INRUSH Current Measurements
• 3000A range for optional MT740 Flex Clamp Adaptor
• VFD – Variable Frequency Drive voltage value
• LoZ – Low impedance mode prevents false readings due to “Ghost” voltage
• NCV – Non-Contact Voltage Detector
• Built-In Flashlight
• Continuity buzzer and Diode Test
• Peak Mode, Min/Max and Data Hold function
• Auto Power Off

• DC Current : 600.00A – 1000.0A
• DC Current resolution : 0.1A
• DC Current accuracy : ±(2.5% +5)
• AC Current : 600.00A –1000.0A
• AC current resolution :  0.1A
• AC Current accuracy : ±(2.5% +5)
• DC Voltage : 600.00mV – 1000.0V
• DC Voltage resolution : 0.1mV
• DC Voltage accuracy : ±(1.5% +5)
• AC Voltage : 6.000V –1000V
• AC Voltage resolution : 1mV
• AC voltage accuracy : ±(1.5%+5)
• Resistance : 600.0Ω –60.00MΩ
• Resistance resolution : 0.1Ω
• Resistance accuracy : ±(1.5% +5)
• Frequency : 9.999Hz – 99.99kHz
• Frequency resolution : 0.01Hz
• Frequency accuracy : ±(1.2%+5)
• Capacitance : 60.00nF – 100.0mF
• Capacitance resolution : 0.01nF
• Capacitance accuracy : ±(3.0% + 8)
• Temperature : -40 to 1000°C
• Temperature resolution : 0.1°C
• Temperature accuracy : ±(1.5% +5)
• Duty Cycle : 10.0% to 90.0%
• Duty Cycle resolution     0.001
• Duty Cycle accuracy : ±(1.2% +10)
• True RMS Measurements : ACV, ACA
• AC Bandwidth : 50Hz to 400Hz
• Digital Display : TFT Colour LCD
• Bargraph : Yes
• Records events and Trends : Yes
• Data logging : Yes
• Bluetooth : 4.0 Bluetooth
• Non-Contact Voltage (NCV) : Yes
• Over-range indication : Yes
• Continuity : Yes
• Diode Test : Yes
• Jaw size : 33mm
• Input Impedance : ˃10MΩ DCV & ˃10MΩ VAC
• Low Frequency Input : Yes
• Min Max : Yes
• Peak hold : Yes
• Data Hold : Yes
• Back Light : Yes
• Enclosure : Double Injection moulding
• Low battery indication : Yes
• Power source : 3x AAA
• Weight : 350g
  Dimensions : 250 x78 x 40mm
