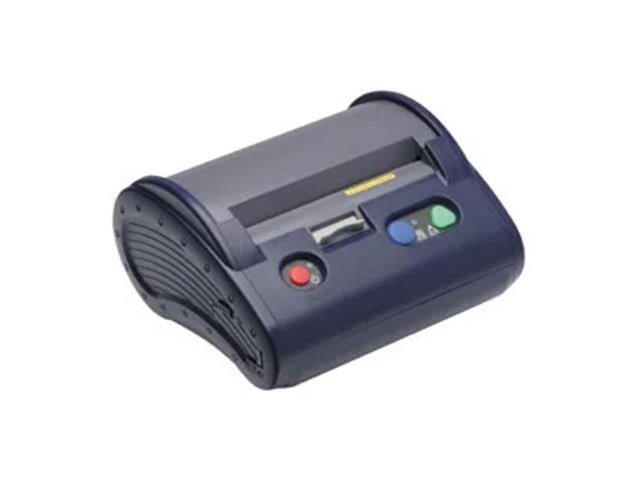

The MPU-L465 features EZ-OP clamshell paper loading and USB, RS-232C, and Bluetooth communication port alternatives. Available accessories include a convenient shoulder strap, battery pack, belt clip, quick charger, and plug-in AC adapter. A rugged, ethylene vinyl acetate and poly-urethane foam case secured by a heavy duty Velcro® strip is available to protect the printer from impact.

With 300 dpi resolution, 85 mm/s print speed, and a variable paper width of 70 to 115 mm, it rapidly delivers crisp and clear bar code labels and a wide range of other output alternatives. Firmware supports an array of character sets and fonts, error indications, and bar code formats that are printable horizontally or vertically.

This high reliability, high resolution printer is the right tool for a variety of mobile printing applications, including:

• Warehousing/distribution
• Mobile workforce
• Law enforcement
• Healthcare
• Test and measurement

Printing

• Method : Thermal line dot printing
• Speed (mm/sec) : 85
• No. dots/line : 1280
• Printing width (mm) : 108.4
• Resolution (dpi) : 300
• Line spacing (mm) : 0.085
• Paper form : Roll paper
• Paper width (mm) : 70 to 115
• Character size (HxW dots) : 24x12, 24x24, 36x18, 36x36
• Character type : Katakana Character, Extend Graphics Character, Downloaded Character, JIS1&2 level Kanji,User-defined Character, Optional Font
• Bar code : UPC-A/E, JAN(EAN)8/13, ITF, CODE39, CODABAR, CODE93, CODE128/EAN128
• 2D bar code : PDF417, QR Code, MaxiCode, Data Matrix
• Interface : USB, RS-232C
• Command : ESC/POS* conformity
• Operating
• Temperature (oC) : -15 to 50
• Humidity (% RH) : 10 to 85(Non condensing)
• Dimensions (WxDxH mm) : 168 x 155 x 87
• Mass : Approx.760
• Service life (km) : 50
• Battery (mAh) : (Li-ion Battery)2000
• Compliance : FCC, CE, VCCI
• Accessories : Battery pack, AC adapter, Battery charger, AC cable, Belt clip, Strap, Serial cable, USB cable, Case

1. Datasheet - MPU-L465-02A-00
