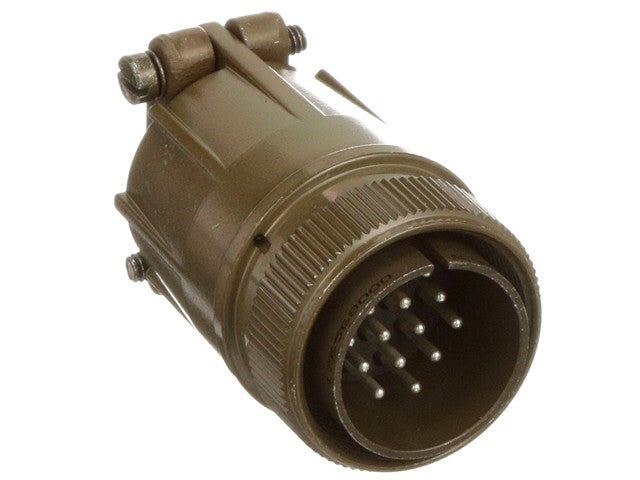

Circular Connector MIL-DTL-5015 Style Screw Lok Cable End Environmental IP65 Plug With Cable Clamp 14 Pol #16 Cont. Male Solder. 13A 500VAC/700VDC
Circular Connector
Feature(s)
- Environmentally sealed construction
- High vibration resistance
- Corrosion-resistant shell finish
- Rugged military-grade design
- Cable clamp with strain relief
Specifications
- Product Type: Circular MIL-Spec Connector
- Series: MIL-DTL-5015 (MS3106)
- Connector Style: Straight Cable Plug
- Connector Gender: Male (Pin Contacts)
- Number of Contacts: 14
- Contact Arrangement: 20-27
- Contact Size: #16
- Contact Type: Solder Cup
- Mounting Type: Cable Mount (Free Hanging)
- Coupling Method: Threaded
- Shell Size: 20
- Shell Material: Aluminum Alloy
- Shell Finish: Olive Drab Chromate over Cadmium (or Olive Drab Zinc, manufacturer dependent)
- Contact Material: Copper Alloy
- Contact Plating: Silver
- Insert Material: Neoprene
- Shielding: No
- Current Rating: 13 A (Amphenol version) / up to 22 A for size-16 contacts depending on manufacturer specification
- Rated Voltage: 700 V
- Wire Size: 22–16 AWG
- Test Voltage: 1600 Vrms
- Contact Resistance: ≤6 mΩ
- Insulation Resistance: ≥1000 MΩ
- Mating Cycles: ≥500
- Protection Rating: IP65 (when mated)
- Operating Temperature: -55°C to +125°C
- Salt Spray Resistance: 500 Hours
Additional Information
| Device |
Connector |
| Type |
Circular | Connector | MIL-DTL-5015 |
Discover the MS3106F-20-27P circular connector, designed for military-grade performance with IP65 environmental sealing. This rugged, corrosion-resistant connector ensures reliable connections in demanding conditions, featuring a high vibration tolerance and a durable aluminum alloy shell. Perfect for applications requiring robust and secure connections, it supports up to 22A and operates in extreme temperatures from -55°C to +125°C. Upgrade your equipment with this dependable solution today!
