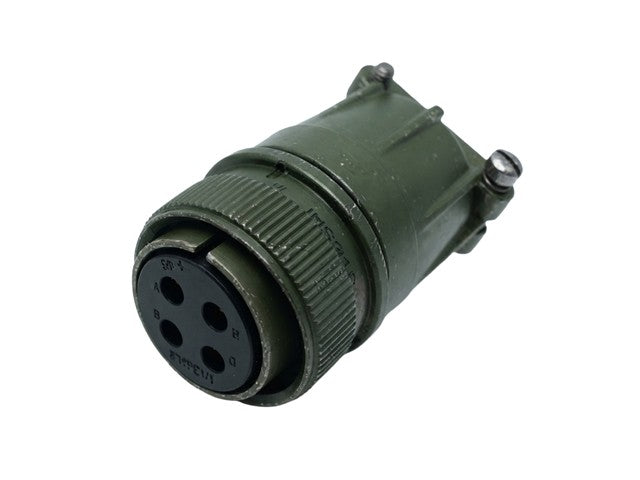

Circular Connector MIL-DTL-5015 Style Screw Lok Cable End Environmental IP65 Plug With Cable Clamp 4 Pol #12 Cont. Female Solder. 23A 900VAC/1,250VDC
Circular Connector
Feature(s)
- Rugged MIL-DTL-5015 construction
- Threaded coupling for secure connection
- Moisture- and corrosion-resistant
- High shock and vibration resistance
- Suitable for harsh industrial and military environments
Specifications
- Product Type: Circular MIL-Spec Connector
- Series: MIL-DTL-5015 (MS3106)
- Connector Style: Straight Cable Plug
- Connector Gender: Female (Socket Contacts)
- Number of Contacts: 4
- Contact Arrangement: 20-4
- Contact Size: #12
- Contact Type: Solder Cup
- Mounting Type: Cable Mount (Free Hanging)
- Coupling Method: Threaded
- Shell Size: 20
- Shell Material: Aluminum Alloy
- Shell Finish: Olive Drab Chromate over Cadmium
- Contact Material: Brass / Copper Alloy
- Contact Plating: Silver
- Insert Material: Neoprene
- Service Class: Environmentally Sealed
- Protection Rating: IP67 (when mated)
- Rated Current: 23 A
- Rated Voltage: Up to 900 V AC RMS / 1250 V DC (manufacturer dependent)
- Wire Size: 12–14 AWG
- Insulation Resistance: ≥5000 MΩ
- Mating Cycles: ≥500
- Operating Temperature: -55°C to +125°C
Additional Information
| Device |
Connector |
| Type |
Circular | Connector | MIL-DTL-5015 |
Upgrade your connectivity with the MS3106F-20-4S Circular Connector. Designed for rugged performance, this MIL-Spec connector ensures secure, moisture-resistant connections in harsh environments, ideal for industrial and military applications. Experience unmatched durability with high shock resistance and a reliable threaded coupling, making it the perfect choice for your demanding projects.
