SKU: P972-0DP10

BRAND: Profichip

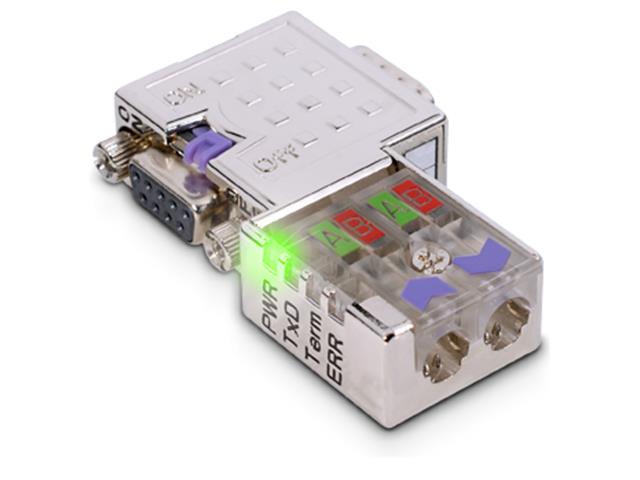

PROFIBUS 12 Mbit/s Easyconn® 9 Pole D Sub Male Connector - 9 Pole Female Programing D Sub with Diagnostics & LED Indication. Cable Entry - 90°. IDC Termination aka EasyConnect® & FastConnect®

9 Pole Male D SUB - 9 Pole Female D SUB 90° Connector


The bus connector EasyConn PB is used for the connection of Profibus participants to the bus line. The fully visible diagnostic LEDs facilitate the installation considerably. Users can immediately check the status of bus activity, termination resistors, power supply and bus status. The integrated controller supports transmission rate of up to 12MBit/s.


  • Cable slots with transparent covers for high visibility (wiring, position of sreen and cable)
  • Full metal construction for noise immunity and harsh environment
  • State monitoring via integrated LEDs for bus diagnosis
  • Comfortable IDC technology for fast and reliable wire connection
  • Captive singe-screw-mounting system - no loose parts
  • Integrated switchable termination resistor
  • Integrated programming / diagnostic port
  • Supporting stranded wire types: LAPP Art. No. 2170222, 2170822, 2170322


Additional Information

Device Connector
Type 9 Pole Male D SUB | 9 Pole Female D SUB 90°
Highlights With Diagnostics
