Passive POE Injector Hub, 8 Port, Gigabit 10/100/1000Mbps, I/P:12-57V, Data In: Connects PC/HUB/Switch, Ethernet Cable:TIA/EIA 568 Cat. 5, (Excludes PSU), 180×60×25mm, 160g

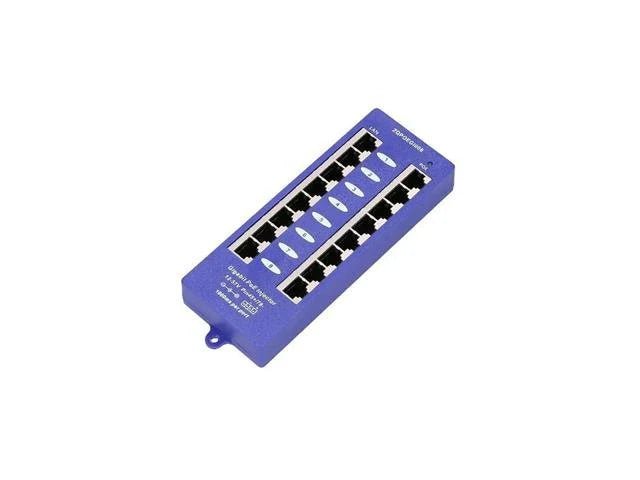

Passive POE Injector Hub
Overview
The ZQPOEI008 passive Poe Injector is used 10/100/1000M Ethernet, The LAN Rj45 sockets is form “Switch/PC/HUB ” 1/2&3/6&4/5&7/8 are transmitting data. The POE Rj45(power+data) socket is to deliver data and power . Pin 1/2 & 3/6& 4/5&7/8 transmitting data, Pin 4/5(+)&7/8(-)for power. Passive PoE is composed of 8 set of Rj45 sockets and one 60V DC power jack.Input power requests 90W or more Ac To Dc Power converter.The input dc hole diameter is 2.1mm and the other end OD id is 5.5mm.
The sum total output power must be lower than the Max input power of AC-DCpower converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter i: 10W per RJ45set (1 set = 2 x Rj45 sockets). For example, 8 × 10W = 80W for 8 port Passive PoE panel .
Specifications
- Input : 12-57V DC 2.1MM/Phoenix 3.5mm DC connector
- Output: 12-57V PER PORT( 1A Max)
- Data: 1/2&3/6&4/5&7/8
- Power: 4/5 & 7/8
- Data In : Connects PC/HUB/Switch
- Weight : 160g
- Dimensions: 180mm×60mm×25mm
- Ethernet Cable : TIA/EIA 568 Cat. 5
- Data rate : 10/100/1000Mbps
- Connector: RJ-45
- Operating Temperature : 0°C ~ 40°C
- Storage Temperature : -40°C~+70°C
- Operating Humidity : 10%~80%RH
- Storage Humidity : 5%~90%RH
- Certication: CE , FCC
Downloads
Additional Information
| Device |
Hub |
| Type |
Passive | POE | Injector |
Upgrade your networking setup with the POE-8G Passive POE Injector Hub. This 8-port hub delivers gigabit speeds (10/100/1000Mbps) and efficiently powers devices, ensuring seamless connectivity for your PC, switches, and hubs. Compact and durable, it supports a wide input voltage range (12-57V) and is perfect for high-demand environments. Enhance your network's performance with reliable power and data transmission today!
