BRAND: Tycon Power

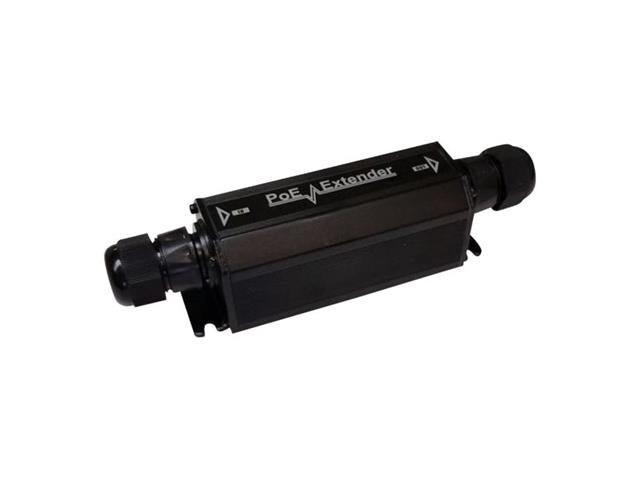

High Power, Shielded Outdoor IP66 Gigabit Ethernet/POE Powered Extender to be able to Extend Ethernet 802.3at/af Compatible or High PoE Input


The POE-EXT-GD-HP is a high quality, high power, shielded Gigabit Ethernet and PoE extender to be able to extend Ethernet beyond the standard 100m limit. By using multiple units, Ethernet and PoE can be extended up to 300m over CAT5/CAT6 cables. The units are powered by PoE so no additional power source is required. Units can accept Mode A (Pins 1,2,3,6) or Mode B (Pins 4,5,7,8) PoE: 802.3af, 802.3at or 48V Passive PoE

The rugged outdoor weatherproof enclosures are powder coated aluminum and are rated to IP66. The units meet outdoor temperature ratings of -25C to +55C.


  • 802.3af / 802.3at Compatible
  • 10/100/1000Mb Compatible
  • Weatherproof – Outdoor rated
  • Easy Plug and Play Operation
  • Extends PoE an additional 100m
  • Auto Link Speed, Duplex and Crossover


  • Wireless Equipment
  • IP Telephone
  • Security Applications
  • Sensor Equipment


  • PoE Input : 802.3af / at / 44 to 57V Passive
  • PoE Input Pinout : 1,2(-) 3,6(+) or 7,8(-) 4,5(+)
  • PoE Output : 802.3af or 802.3at Class 4
  • PoE Output Pinout : 1,2(+) 3,6(-) Up to 25W
  • Data Speeds : 10/100/1000Mb
  • Self Consumption Power : 2.0W Typ
  • Operating Temperature : -13°F to 131°F (-25°C to +55°C)
  • Operating Humidity : 0 to 100% RH

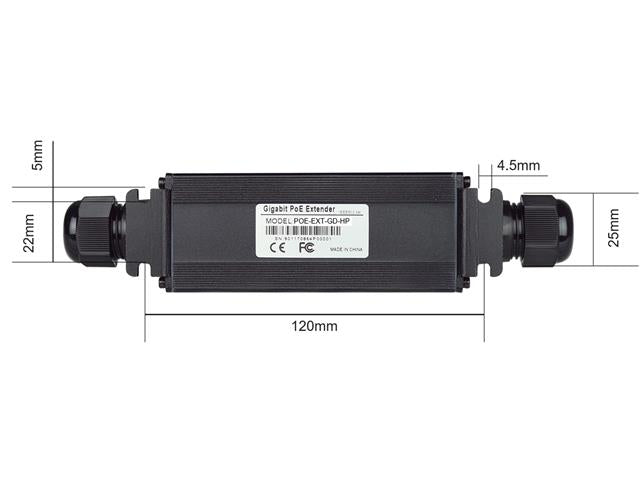

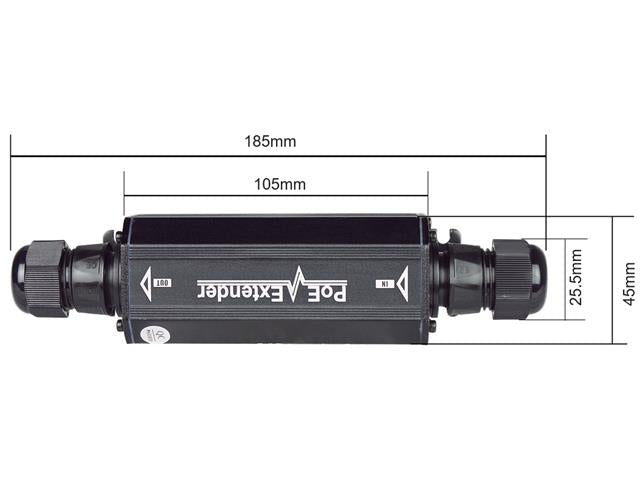

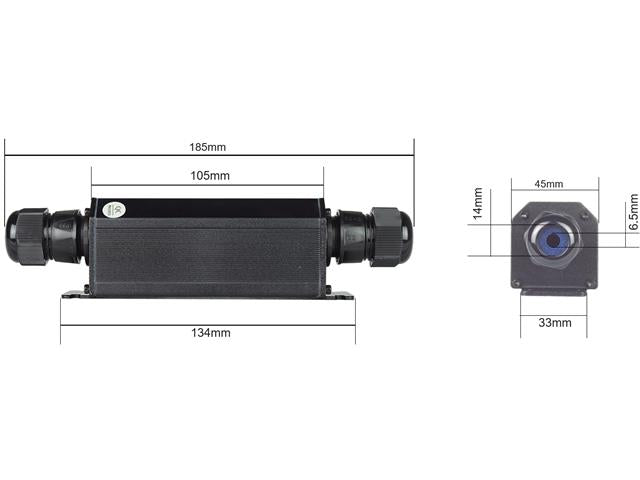

  • Size : 7.3 x 1.8 x 1.8” (185x45x45mm)
  • Weight : 8.5oz (240g)
