Overview

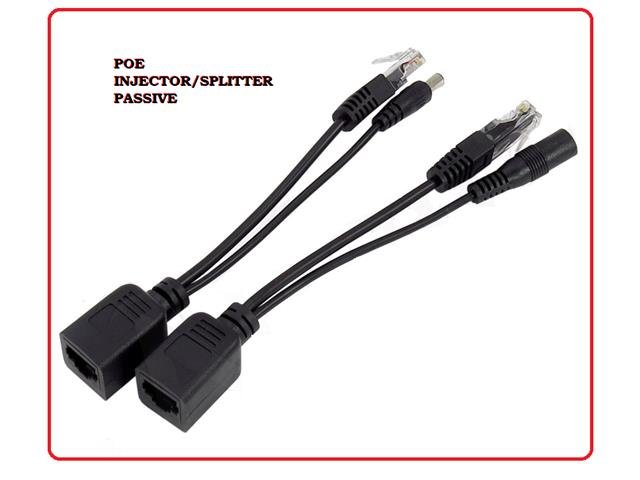

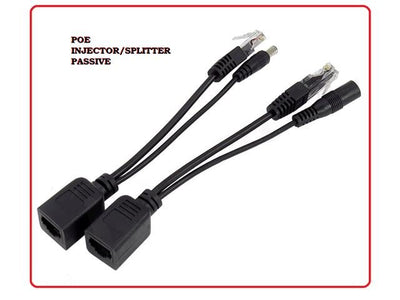

POE is a passive injector splitter combination with built in over current protection. Ideal for injecting
12-15VDC on to the cable from an external power supply. The devices have two indicator lights, green to
display that the unit has been powered up and the yellow that the device is in overcurrent mode. The

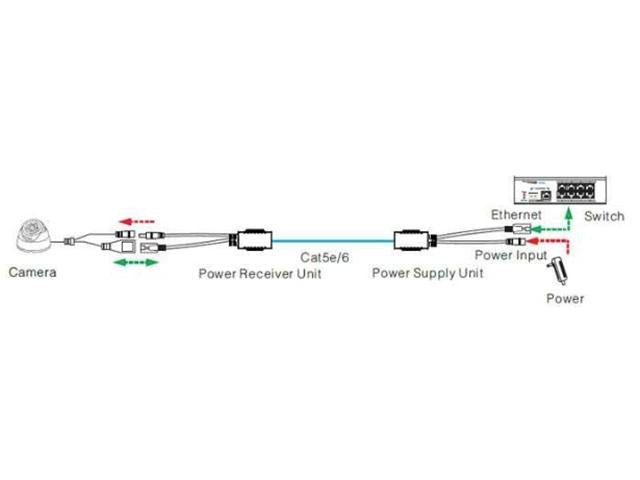

CC71 is ideal for solar systems where we need to inject 12VDC onto the cat5e/6 cable to power the
Features.
WISNETWORK radios, IP cameras and remote network switches.
Features
- Extend power up to 50m from power PoE Injector.
- PoE injector and PoE splitter units.
- Power transferred over pins 4,5 & 7,8.
- External power input 12-15VDC
- Over current protection
Specifications
- Voltage Range : 12-15 VDC
- Ethernet port : Lan port 10/100Mbps
- Ethernet Standard : IEE802.3BASE-T. IEEE802-3u 100BASE-TX
- Transmission Distance : 0-50m cable dependent. See table below
- LED Indicators : Green LED = Powered up, Yellow LED = Overcurrent protection
- Operation Temperature : -10DegC - 55DegC
- Storage Temperature : -40DegC - 85DegC
- Humidity(Non-condensing) : 0-95%
- Dimensions (L x W x H) : Main Body 41mmX24.5mm21.6MM Cable length 150MM
- Material : ABS Plastic
- Colour : Grey
- Weight 57g(pair)
Downloads
Additional Information
| Device |
Injector & Splitter |
| Type |
Passive | PoE |
