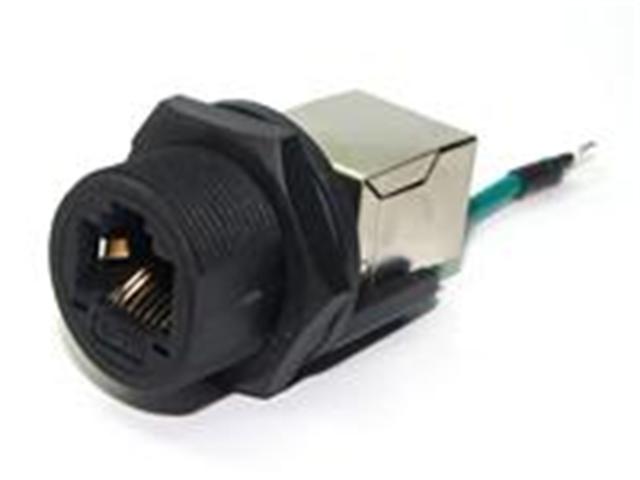

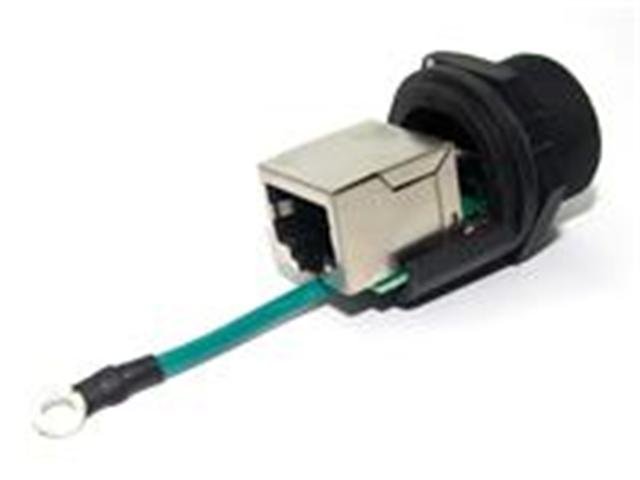

RCP - 5SPFFH - SCU7002 - Interface Connectors -
RCP - 5SPFFH - SCU7002 - Interface Connectors -
RCP - 5SPFFH - SCU7002 - Interface Connectors -
RCP - 5SPFFH - SCU7002 - Interface Connectors -

RCP-5SPFFH-SCU7002

SKU: RCP-5SPFFH-SCU7002

BRAND: Amphenol LTW


In Stock
R 257.03 (inc VAT)
R 223.50 (ex VAT)

Collections: Connectors

Type: Interface Connectors

Category: RJ45 Connector

RJ45 C Size Ground Wire Panel Screw 5E Female Connector Female Pin

Ground Wire Panel Screw 5E Female Connector

Specifications

  • Waterproof Rate : IP67 Unmated
  • Housing : Nylon + GF, UL 94V-0, Black
  • Screw Nut : Nylon + GF,. Black
  • Gasket : Silicone, UL 94V-0, Gray
  • PCB : FR-4
  • Jack : PBT Polyester UL 94V-0
  • Ground Terminal : Bass, Tin Plated, Thickness : 0.4mm
  • Use without Waterproof cap or Dust cap for Panel Thickness Max : 4.2mm
  • Use with Waterproof cap or dust cap for panel Thickness Max : 3.0mm
  • Screw Torsion Value Range : 8~12kgf-cm

Feature

  • Connector : RJ45 13/16
  • Category : Cat 5E
  • Connector Type : Jack Connecor
  • Mounting Style : Screw Thread
  • Installable on the ground : Jack (Horizontal)
  • Connector type body : Front Fastened
  • Backshell : Circular
  • Cutting the panel : 20.8X19.4

Downloads

Additional Information

Device Connector
Type Ground Wire | Panel Screw | 5E | Female
Highlights RJ45 | C Size | Female Pin
