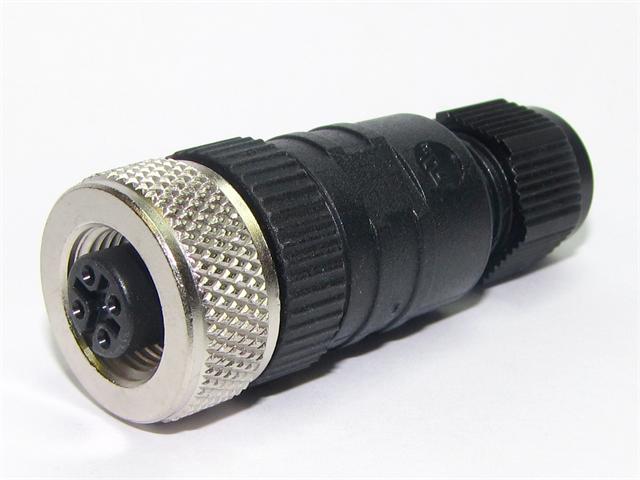

Circular Connector M12 A COD Cable Female Straight. 5 Pole Screw Terminal PG7 Cable Entry
M12 A COD Cable Female Straight Circular Connector
Specifications
Type |
M12 Circular |
Gender |
RCP |
Mounting |
Cable Mount |
Body Orientation |
Straight |
Number of Ports |
1 |
Number of Contacts |
5 |
Number of Terminals |
5 |
Contact Gender |
SKT |
Termination Method |
Screw |
Wire Size (AWG) |
19 |
Less Contact |
No |
Contact Material |
Brass |
Contact Plating |
White Bronze Over Copper |
Shell Material |
Brass |
Shell Plating |
Nickel |
Maximum Current Rating (A) |
4 |
Maximum Voltage Rating |
63V |
Minimum Operating Temperature (°C) |
-25 |
Maximum Operating Temperature (°C) |
90 |
IP Rating |
IP67 |
Insulation Resistance (MOhm) |
1000 |
Maximum Contact Resistance (mOhm) |
5 |
Mating Style |
Threaded |
Product Diameter (mm) |
20 |
Product Length (mm) |
52.5 |
Additional Information
Device |
Connector |
Type |
M12 | A COD | Cable | Female | Straight | Circular |
