RKCW 5/9

Name: RKCW 5/9 - Communica [Part No: RKCW 5/9]
Brand: Belden
SKU: RKCW 5/9
Price: 267.75 ZAR
Availability: InStock

SKU: RKCW 5/9

BRAND: Belden

In Stock
R 307.91_{(inc VAT)}
R 267.75_{(ex VAT)}

Collections: Connectors

M12 Circular Connector, Female, Right Angle,
5 Pole, Screw Terminal, PG9 Cable Entry

Overview

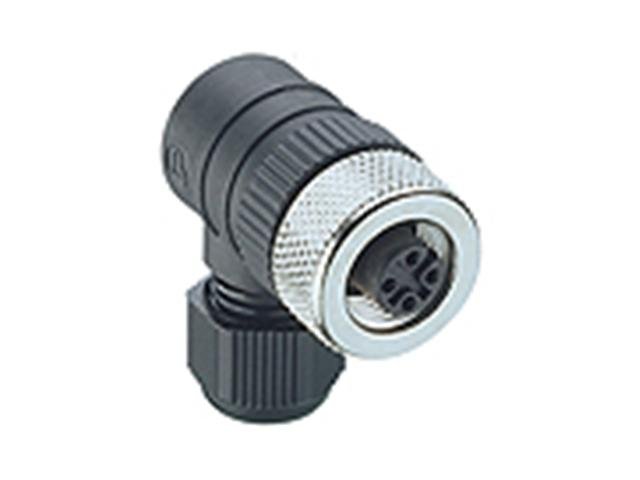

The Lumberg Automation RKCW 5/9 Female Right Angle M12 Field Wireable Connector has a 5 pin insert.
The PG 9 cable entry accepts 4-8 mm cable.
The body is black PBT with copper alloy contacts.
It has a rated voltage of 63V and a nominal current of 4 A.
Protection class IP 67.

Dimensions- 35 mm Length x 20 mm Width x 37.5 mm Height (1.3" x 0.78" x 1.4")
Type of Contact- Female Right Angle
Number of Pins- 5
Rated Voltage- 63 V
Nominal Voltage- 60 V
Nominal Current- 4 Amps
Conductor Size- 0.75 mm²
Cable Diameter Range- 4-8 mm
Protection Class- IP 67 (Totally protected from dust & temporary immersion in water at a depth of 1 meter for 30 min) / NEMA 6P
Housing Material- PBT (Polybutylene terephthalate thermoplastic)
Insert Material- PBT (Polybutylene terephthalate thermoplastic)
Contact Material- CuZn (Brass) pre-coppered, CuSnZn (Copper-Tin-Zinc)
Receptacle Shell- CuZn (Brass), nickel plated
O-Ring Material- FKM (Fluro-Elastomer rubber)
Type of Connection- Screw Terminals
Contact Resistance- </= 5 mOhm
Insulation Resistance- > 10⁹ Ohm
Operating Temperature- -25 C to 90 C (-13 F to 194 F)

Device	CONNECTOR
Type	M12 \| FEMALE \| RIGHT ANGLE
