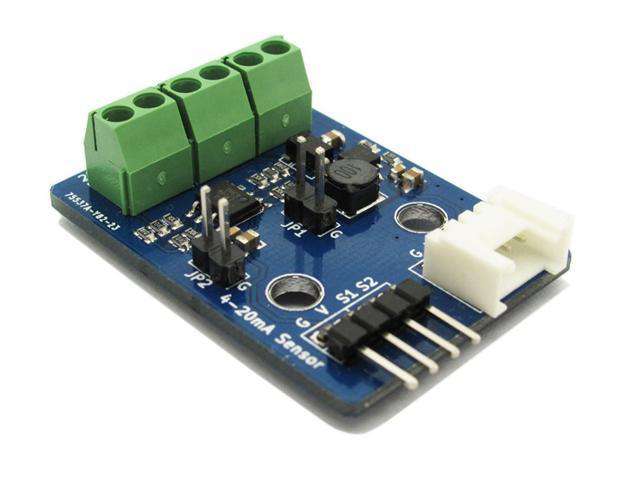

SME 4-20MA SENSOR BRICK

Name: SME 4-20MA SENSOR BRICK - Communica [Part No: SME 4-20MA SENSOR BRICK]
Brand: Communica
SKU: SME 4-20MA SENSOR BRICK
Price: 133.33 ZAR
Availability: OutOfStock

SKU: SME 4-20MA SENSOR BRICK

BRAND: Communica

Sold Out
R 153.33_{(inc VAT)}
R 133.33_{(ex VAT)}

Collections: IoT, Internet of things

Type: Sensors

Category: Iot, Sensor Brick, Sensors

Sensor Breakout Board to test Current Loop 4~20mA with 5~24V DC-DC Power Boost Convertor @150mA

Overview

4~20mA Sensor Brick is an electronic brick module that can be used to test electronic current loop from 4mA to 20mA and support type2,3,4 current output. With a 5V to 24V DC-DC power boost convertor, its max current output can be 150mA, which can be for equipment use.

Features

Compatible with the mainstream 2.54 and 4-pin Grove interface in market
Compatible with type2,3,4 electronic current loop With use of M4 standard fixed holes
Compatible with M4-standard kits such as Lego and Makeblock

Specification

Brick Type : Sensor Brick
Brick Interface : 4pin Parallel
LED Color : Blue
Weight : 15.00g
PCB size : 40.6x29x1.6mm
Power supply : 5VDC
Compatible interfaces : 2.54 4-pin interface and 4-pin Grove interface(1)
Power Supply : min-4.5VDC, typ-5VDC max-5.5VDC
Input measurement current min:4mA, max:20mA
Output Current(DCDC) : max-150mA
