SME JOYSTICK SHIELD

SKU: SME JOYSTICK SHIELD

BRAND: Communica


5 button Joystick Shield Kit for ARDUINO

Overview

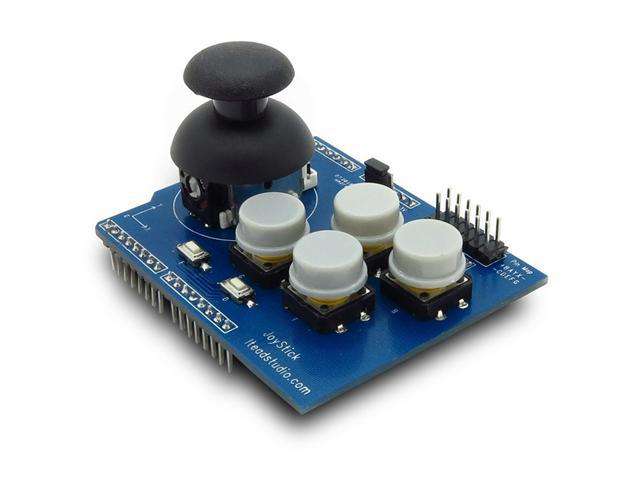

The Joystick Shield kit contains all the parts you need to enable your Arduino with a joystick. The shield sits on top of your Arduino and turns it into a simple controller. Five momentary push buttons (4+ joystick select button) and a two-axis thumb joystick gives your Arduino functionality on the level of old Nintendo controllers.

The momentary push buttons are connected to Arduino digital pins 2-6; when pressed they will pull the pin low (utilizing the internal pull-ups of the Arduino). Vertical movement of the joystick will produce a proportional analog voltage on analog pin 0, likewise, horizontal movement of the joystick can be tracked on analog pin 1.

Features

Specification

  • Version : 1.0
  • Compatible Mainboard
    • Leaf maple
    • Arduino Deumlanove/UNO
    • Arduino MEGA
    • ChipKit MAX32
    • ChipKit UNO32
    • FEZ Panda II
    • Freeduino
    • Iteadmaple
    • Iteaduino
    • Iteaduino ADK
    • Iteaduino BT
    • Iteaduino MEGA 2560
    • Simple Cortex
    • Seeeduino
    • Seeduino MEGA
  • Shield Functions : Input
  • Board Size : 70mm x 54mm
  • Operation Level
    • Digital 3.3V
    • Digital 5V
  • Stackable : No
  • Weight : 50.00g
