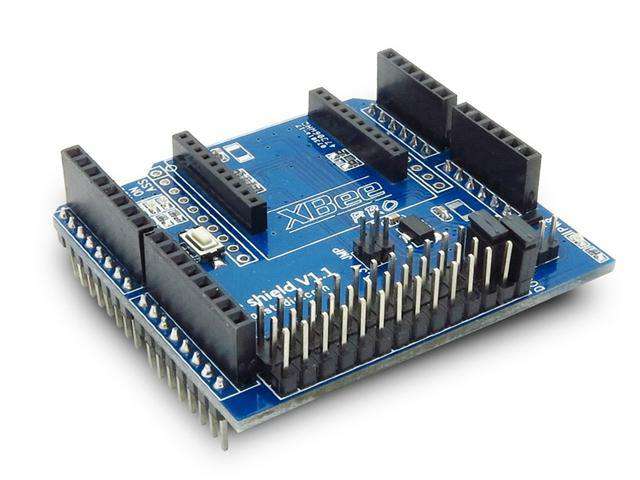

SME XBEE SHIELD

SKU: SME XBEE SHIELD

BRAND: Itead Studio


XBee Shield to interface an XBee with your Arduino Pro or USB 55mm x 59mm

Overview

The XBee Shield simplifies the task of interfacing an XBee with your Arduino. This board mates directly with an Arduino Pro or USB board, and equips it with wireless communication capabilities using the popular XBee module. This unit works with all XBee modules including the Series 1 and Series 2 (and 2.5), standard and Pro version.

Features

  • Double shield interfaces compatible with Arduino for easy cascading
  • 3 indicator (ON/SLEEP, RSSI, ASS)* LED for XBee
    • *RSSI: Receiver Signal Strength Indication
    • *ASS : Association
  • Provide maximum 500mA under 3.3V
  • Full 2.54mm break out for XBee
  • Switchable to FTDI-USB or Arduino with HardwareSerial or SoftwareSerial

Specification

  • Version : 1.1
  • Shield Functions : Adapter
  • Board Size : 55mm x 59mm
  • Operation Level : Digital 3.3V | Digital 5V
  • Stackable : No
  • Weight : 35.00g
