SOLDER BUTT CONNECTOR 0.5-1MM

Name: SOLDER BUTT CONNECTOR 0.5-1MM - Communica [Part No: SOLDER BUTT CONNECTOR 0.5-1MM]
Brand: Communica
SKU: SOLDER BUTT CONNECTOR 0.5-1MM
Price: 17.20 ZAR
Availability: InStock

SKU: SOLDER BUTT CONNECTOR 0.5-1MM

BRAND: Communica

R 19.78_{(inc VAT)}
R 17.20_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Wire & Cable

Type: Cable Lugs, Terminals & Splices

Category: Splice Connectors

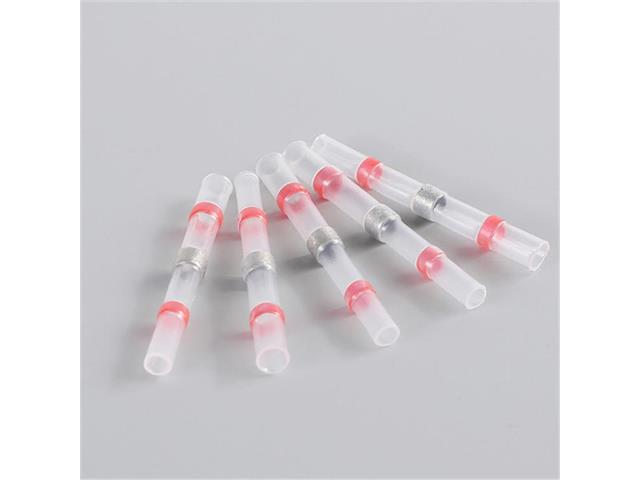

Solder Butt Connector Red 0.5-1mm Pack of 5

Solder Butt Connector Red

Features

Waterproof and heat shrinkable, easy to operate, fast dissolving at low temperature, strong conductivity
Both ends of the outer tube contain colored hot melt adhesive, waterproof, no leakage, safe to use
100% new high quality.
Shape and color: same as the picture
Shrinkage Ratio 2:1
An easy One-Step Wire Connections.
Easy Identification: Color coded connector tubing.
Polyolefin heat shrink butt connectors improve Pullout Strength.
High-quality wire connectors in Seal, Strain Relief, Cable Check and Insulation.
Melted Solder ensures wires Strongly Connected and avoids wires slipping out from the terminal.

Specifications

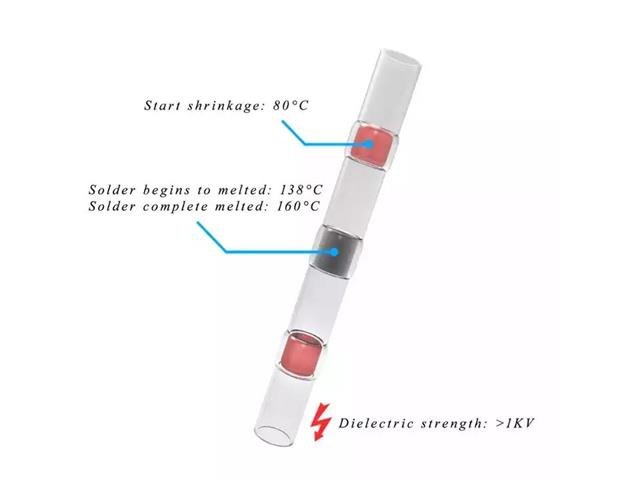

Operating Temp : -55℃-125℃
Start Shrinking Temp : 80℃
Solder Start Melting Temp : 138℃
Solder Complete Dissolution Temp : 160℃
Shrink Temp : >160℃
Protection class : IP67

Downloads

Datasheet - SOLDER BUTT CONNECTOR 0.5-1MM

Additional Information

Device	Connector
Type	Solder Butt \| Red

Experience superior electrical connections with our Solder Butt Connector 0.5-1mm, designed for durability and safety. Featuring waterproof, heat-shrinkable tubing and high conductivity, these connectors ensure strong, secure wire connections without leaks. Ideal for various applications, they offer easy identification with color-coded tubing and a reliable 2:1 shrinkage ratio. Upgrade your wiring projects with these high-quality, efficient connectors today!
