SW-804

SKU: SW-804

BRAND: Planet

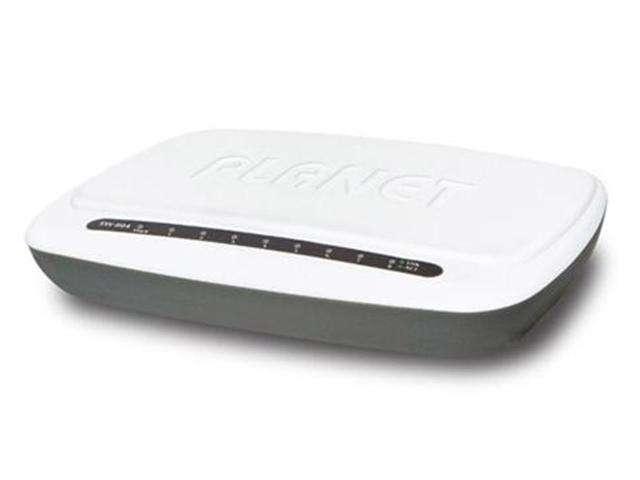

Planet 8 Port 10/100Mbps Desktop Fast Ethernet Switch

Overview

High-speed 10/100Mbps Workgroup Switch PLANET Fast Ethernet Switch SW-804 provides business and home users with a cost-effective integrated system of small-office / home-office networking. It is with compact-sized plastic case design and just right for the network of 10 to 50 users.

Stable Fast Ethernet Switch Performance The SW-804 also supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity. The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, and 148,800 packets per second in 100Mbps) and 448K bit packet buffer help the SW-804 to boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path. With an intelligent address recognition algorithm, the SW-804 could recognize up to a 1K different MAC address and provide 1.6Gbps switching capacity, which makes the SW-804 offer wire-speed packets transfer performance without risk of packet loss.

Flexible Desktop Size Design The SW-804 is the fancy-shaped plastic model to fit into space-limited environment. With concepts of "Easy to install and use", "Compact sized design", and "Simple troubleshooting", the SW-804 provides cost-conscious business and home users with the foundation from an integrated system of small-office / home-office networking.

Features

RJ-45 Interface

  • Eight 10/100Mbps Fast Ethernet ports
  • Complies with IEEE 802.3, 10Base-T, IEEE 802.3u
  • 100Base-TX Ethernet standards
  • Supports Auto MDI/MDI-X function

Switching

  • Hardware-Based 10/100Mbps, half / full duplex, flow
  • control and auto-negotiation
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Integrated address look-up engine, supporting 1K absolute
  • MAC addresses
  • Handles up to 1536bytes packet
  • Automatic Address Learning and Address Aging
  • Supports CSMA/CD Protocol

Hardware

  • Made from plastic, Desktop size and Wall-Mount design
  • LED indicators for system power, per port Link / Act
  • 5V DC, 1A External Power Adapter
  • FCC, CE Class B compliant
